Detailed description | 产品细节

Various types and materials of Cutting and Stripping Machine Blades can be customized

Blade Description
Flat knife: suitable for stripping flat wires knife: suitable for an outer diameter of 4.0mm
or thicker wire, the size can be adjusted
Flat knife: suitable for stripping flat wire

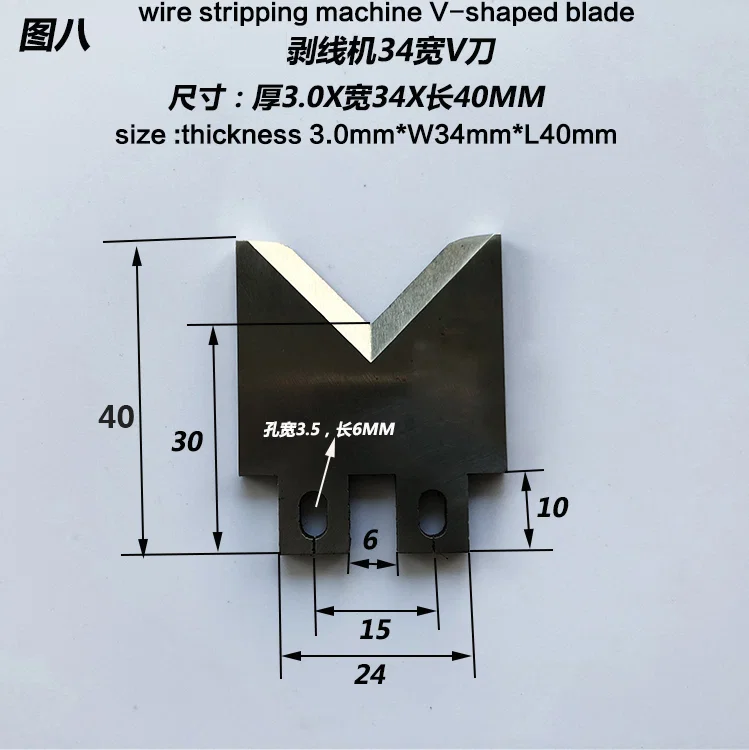

V knife: suitable for the outer diameter of 4.0mm or thicker wire, the size can be adjusted
Cutter: Straighten the head of the thread
Round knife: suitable for all-round lines, the blade size is 2.0-14mm, 2.0-10mm interval
0.5mm blade, 10.0-14mm blade, need to provide wire outer diameter
Counter knife: thinner wire
Semi-circular butt-knife: common fork-shaped v-knife and round-knife peeling due to the asymmetric force, when processing
the wire with thin skin and long stripping length, the inner core is often scratched. It is difficult to align the knife edge, which seriously affects production efficiency

The blade material of the computer wire stripping machine is divided into three types: white steel (hardness 58), high-speed steel (hardness 68), and tungsten steel (hardness 88). The blades are all finely ground by a grinder, and the quality is guaranteed. If you don't know
what to use For material, please consult customer service. Because the hardness of tungsten steel is relatively high, it is not recommended to
use tungsten steel for hardwiring.
Special note: The tungsten steel material is very hard and very brittle. Please do not fall to the ground when installing it! It may be broken
as soon as it is installed, but if it is installed, the life of the ordinary material is more than 3 times
