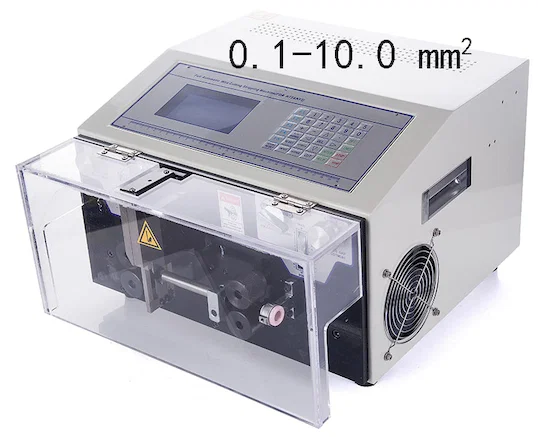

Wire stripping and cutting machine WPM-09JE2
Wire stripping and cutting machine WPM-09JE2
  • Wire stripping and cutting machine WPM-09JE2

  • Model No : WPM-09JE2
  • Wire stripping and cutting machine, Wire Cutting Stripping Machine, Machine For Cutting And Stripping Wires, Automatic Wire Cutting And Stripping Machine Product
    wire cross-section: 0.1-1.0sq.mm
    Conduit diameter: 13mm
    Stripping length: Head side 0-80mm
    Tail side 0-80mm
    Cutting length: 1-100000mm
    Measurement: 39*35*25cm
    wire stripping and cutting machine
  • Inquiry now
Detailed description Wire stripping and cutting machine, Wire Cutting Stripping Machine, Machine For Cutting And Stripping Wires, Automatic Wire Cutting And Stripping Machine Products
Features:
Automatic Full Computer Wire Stripping Machine
Adopt the advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.

Apply for:
Widely used in the electronics industry, the city ahs, electrical appliances, motors, lamps, toys,
and other various products of wire processing.

Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.


Specification:
Available   Wire Cross-Section Range: 0.1~10.0mm2(AWG7#-AWG32#)
Conduit   Diameter: ¢13mm
Cutting   Length: 1~100000mm
Cutting   Tolerance: ±(0.002×L)  (L=Cutting Length)
Stripping   Length: Head 0~80mm, Tail 0~80mm
Middle   Stripping Section: Max 16
Speed:  3000-5000pcs/h
Display   Way: English LCD
Drive   Mode: 4 Drives
Blade   Material: Hard tungsten steel
Appropriate   Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
Power   Supply: 220V/50Hz   110V/60Hz
Power   Rating: 500W
Measurement: 390X350X255mm
Weight: 36kg



Wire stripping and cutting machine, Wire Cutting Stripping Machine, Machine For Cutting And Stripping Wires, Automatic Wire Cutting And Stripping Machine Producsample display of Wire stripping and cutting machine, Wire Cutting Stripping Machine, Machine For Cutting And Stripping Wires, Automatic Wire Cutting And Stripping Machine Produc

Model

WPM-09D

WPM-09JE

WPM-09JE

Wire material

PVC, teflon, fiberglass wire...

 PVC, teflon, fiberglass wire...

PVC, teflon, fiberglass wire...

Conductor cross-section

0.1 - 8.0 mm² (32 - 8 AWG)

0.1 - 8.0 mm²(32 - 8 AWG)
Note: BV wire < 4mm²

0.1 - 10 mm²(32 - 7 AWG)
Note: single-stranded BV < 6 mm²; 7 core BV < 10 mm²

Cutting length

1 - 99,999 mm

1 - 99,999 mm

1 - 100,000 mm

Cutting length tolerance

0.002 * L

0.002 * L

 0.002 * L

Stripping length

Side I: 0 - 35 mm

Side II: 0 - 15 mm

Side I: 0-50mm

Side II: 0 - 50 mm

Side I: 0 - 80 mm

Side II: 0 - 80 mm

Maximum guide tube diameter

8 - 10 mm

8 - 10 mm

13 mm

Productivity

33 - 83pcs/min

33-83pcs/min

50-133pcs/min

Noise level

< 70 dB(A)

< 70 dB(A)

< 70 dB(A)

Power supply

110, 220 V (50 - 60 Hz)

110, 220 V (50 - 60 Hz)

110, 220 V (50 - 60 Hz)

Power

300 W

300 W

500 W

Gross Weight

34 kg

34 kg

34 kg

Carton dimension

537 * 507 * 400 mm

537 * 507 * 400 mm

537 * 507 * 400 mm




If you are interested in this product, please send us your inquiry and we will reply to you ASAP!
