Fixed Length Cable Machine WPM-18-45
Fixed Length Cable Machine WPM-18-45
  • Fixed Length Cable Machine WPM-18-45

  • Model No: WPM-18-45

  • WPM-18-45 Fixed Length Cable Machine: Cuts cables to precise lengths. Ensures consistent cable lengths for assembly. Reduces cable waste. Ideal for cable harness and jumper wire production.

  • Inquiry now

Detailed description


Automated Cable Cutting, Winding, and Binding Machine with Fixed-Length Capability.
These cutting and winding machines are suitable for round wire, flat/ribbon wire, 2-pin double wire, etc. It will process the wire according to the parameters you set on the LCD touchscreen, the whole producer is fast and stable. The cutting length and wire binding cycle are both easy to adjust, the previous setting parameters will be saved automatically. All of its wearing parts are designed very durable and artful, it released manual work and improved working speed as well as processing stability.
Model    WPM-18-45
Suitable Cable Tie Length    120-200mm
Binding Diameter    18-45 mm
Winding Outer Diameter    20-200mm
Winding pitch    100-200mm
Binding speed    0.6 S/time
Winding Speed    1-10 cycle / S
Tie the material       PE iron core
Power Supply    AC220V 50Hz/ 110V 60Hz
Power    <200W
the gross weight    of about 17Skg
Overall dimensions    200*620*1030 ( mm )

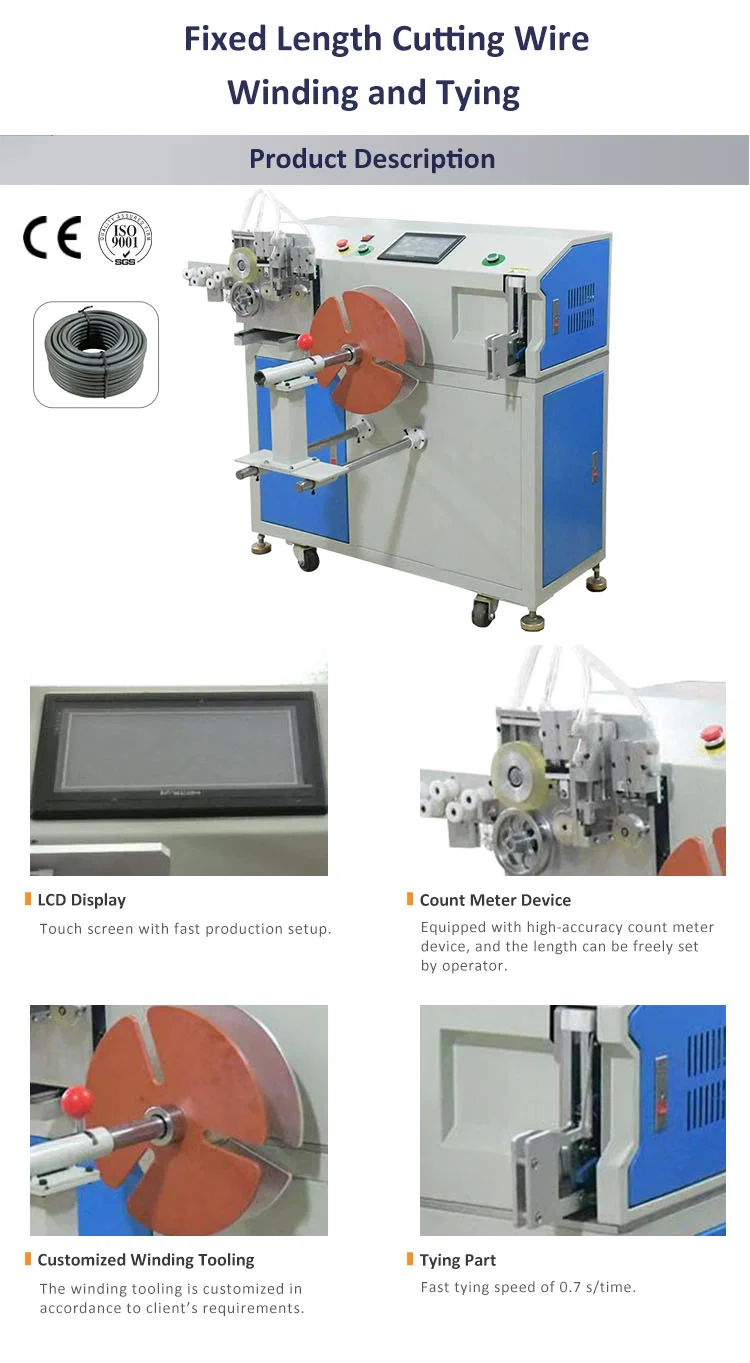

Fixed length Cable Cutting Winding and binding Machine

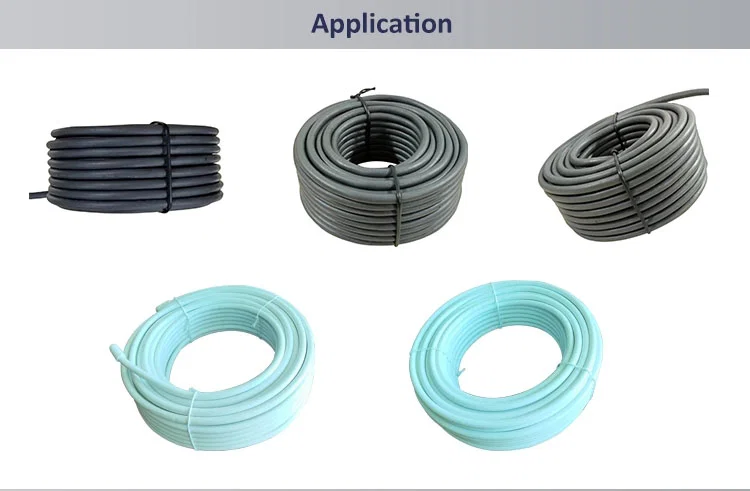

sample of Wire Twisting Machine Manufacturing Equipment, Cable Twist Tie Machine, Wire Cable Winding And Bunding Machine

Cable Cutting Winding and binding Machine, Fixed length Cable Cutting Winding and binding MachineCable Cutting Winding and binding Machine, Fixed length Cable Cutting Winding and binding MachineCable Cutting Winding and binding Machine, Fixed length Cable Cutting Winding and binding MachineCable Cutting Winding and binding Machine, Fixed length Cable Cutting Winding and binding MachineCable Cutting Winding and binding Machine, Fixed length Cable Cutting Winding and binding Machine
