Auto Coiling Binding Machine WPM-RT-82T
Model No: WPM-RT-82T
The Auto Coiling Binding Machine WPM-RT-82T automates wire coiling and binding for efficient cable management. This machine streamlines cable preparation, providing organized and securely bound cable coils for storage and handling in manufacturing and distribution.
Inquiry now

Detailed description

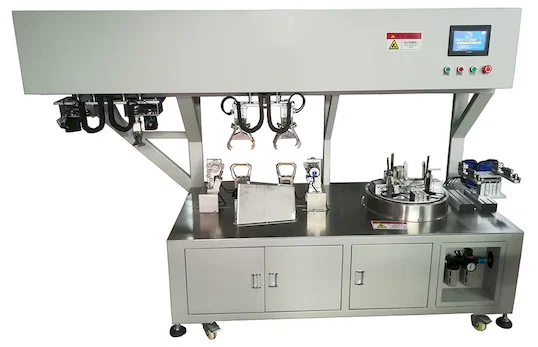

Automatic winding and binding machine WPM-RT-81T
Suitable for AC/DC/USB cable
Winding appearance large 8-word single-tie tape
Applicable line length ≤10 m
Applicable wire diameter ≤ φ 12 mm
The spacing of winding is 150-300mm
Binding diameter ≤45 mm
The head length is 0-130 mm
Tail length >0 mm
Production efficiency 1000PCS /h (1-meter line length, 3 turns, outcrop, and tail)
Applicable pressure 0.55-0.65Mpa
Applicable tie tape ≤7.5 KG/ roll
Applicable voltage 220V 50Hz
Machine power ≤2800W
The machine size is about 1040L*720W*1540H mm
The weight of the machine is about 230KG
Main components:
Cylinder: Yadeke cylinder and solenoid valve,
Motor: Winding servo motor 1500W Turbot
Motor: line translation servo motor 750W Turbot
Motor: 57 stepper motor thunder race
Motor: Twisted tie belt 57 stepper motor thunder race
Motor: storage tie belt 6W fixed speed
Take line translation: double slider
PLC: vigor
Screen: Dimension control
Power supply: clear weft
Frame: iron frame, painted, blue and white
Wire grab/twisting claw/lower claw Material: stainless steel
Drive system: high-reliability servo system, a control system for high-speed stable industrial controller
1. new style, high matching, around the big 8 shapes, tie 1 tie;1. new style. high matching. around the big 8 shapes. tie 1 tie;
2. suitable for AC wire. power cord. thick long wire. rope. and hose;
3. winding motor adopts 1500W (1000 RPM) servo. full power. more stable;
4. take line translation motor 750W servo. eliminate step loss phenomenon and demagnetization problem of stepping motor. translation is more stable;
5. the top transparent chassis. pipeline layout and quality at a glance. high-grade atmosphere. three sides + top four sides can be disassembled. convenient maintenance;
6. independent power distribution cabinet. can be removed as a whole. electrical lines standard. neat. standard. convenient maintenance;
7. the bearing capacity of the tie belt can reach 7.5kg. reducing The time of changing the tie belt. and improving work efficiency;
8. A separate button is added to the structure of the spit tie belt. which is more convenient for installation and debugging;
9. rubber band under the claw structure optimization. make rubber band more wear resistance. installation and debugging more convenient,
10. the barometer upgrade. can automatically filter. drainage;
11. aluminum plate. conversion plate. fully upgraded into steel material. the machine is more durable;
12. The connection structure of the twisting claw. taking claw and lower claw is made of stainless steel. which is more stable and beautiful.
13. coil structure upgrade. less noise. more stable;
14. the production efficiency can reach 1000 pieces/hour. saving labor;
15. easy to operate. easy to debug. easy to maintain;
16. small size. does not occupy the place. save the rent;
17. humanized design. reduce the fatigue intensity of staff;
18. Programmable logic controller (PLC) control. Bilingual man-machine interface control;
18, Programmable logic controller (PLC) control, Bilingual man-machine interface control;
Super long head and tail, circular winding and tying machine:
Winding appearance Circle Single tie/double tie
The inner diameter of the circle is 90-180mm
The suitable wire diameter of 3-10mm.
Applicable length 1-10m
Head and tail stay long 600-750mm
Binding diameter ≤40mm
It is suitable for binding tape covering iron core
Machine efficiency ≤600PCS/H
The machine power is about 3.5KW
The machine size is about 1900W*800D*1600Hmm
Machine weight: about 600KG
Non-standard, super long head and tail, circular winding and tying machine (WPM-RT-02M) :
Cylinder: Yadeke cylinder and solenoid valve
Motor: Winding main servo motor 1500W Turbot
Motor: line translation servo motor 750W Turbot
Motor: 57 stepper motor thunder race
Motor: Twisted tie belt 57 stepper motor thunder race
Motor: storage tie belt 6W fixed speed
PLC: vigor
Screen: Dimension control
Relay: Omron
Frame: iron frame exterior painted computer grey
The driving system is a high-reliability servo system
The control system is a high-speed and stable industrial controller and system software.
