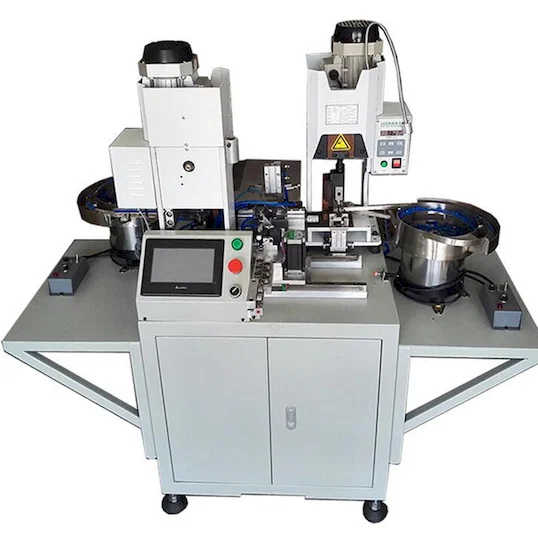

The automatic wire-cutting stripping and crimping machine adopts a procedural control interface with a touch screen LCD, it has an operating system in Chinese and English, is easy to operate, and has stable performance. Fast send wire, cut wire, strip wire and crimp the terminals, high precision, fast speed, front and rear swing arms are both controlled by servo, and ultra-low noise, more stable. The length of sending/cutting/stripping wire, and the delay time of crimping, all can be accomplished by digital configuration.
|
available wire size |
AWG16-AWG28# |
|
Cutting length |
45-3200mm( Longer can be customized) |
|
Cutting accuracy |
cutting length *0.2% |
|
Stripping length |
0.5mm-14mm |
|
Pressure capacity |
1.5T |
|
Detection device |
no wire; no terminal, insufficient pressure |
|
Voltage |
AC220V/50HZ single phase |
|
Air pressure |
0.5Mpa |
|
Dimension |
750mm*800mm*1700mm |
|
Weight |
400kg |
