Coaxial cable cutting and Stripping Machine WPM-9800
Model No : WPM-9800
Automatic Coaxial cable cutting stripping machine,Cable Stripping Machine, Coaxial Cable Stripping Machine, Stripping Machine
Model： WPM -9800
wire capability OD：0.64-4mm
The maximum Strip：Left end:40(mm) Right end (unlimited)
Maximum strip layers：8 layers
Power supply：220V/50HZ P:380W
Cutting off length：10mm-9999mm
Cutting depth of the unit：0.01mm
Strip accuracy：±0.1mm
Display mode：7 inch LCD in English
Inquiry now

Detailed description

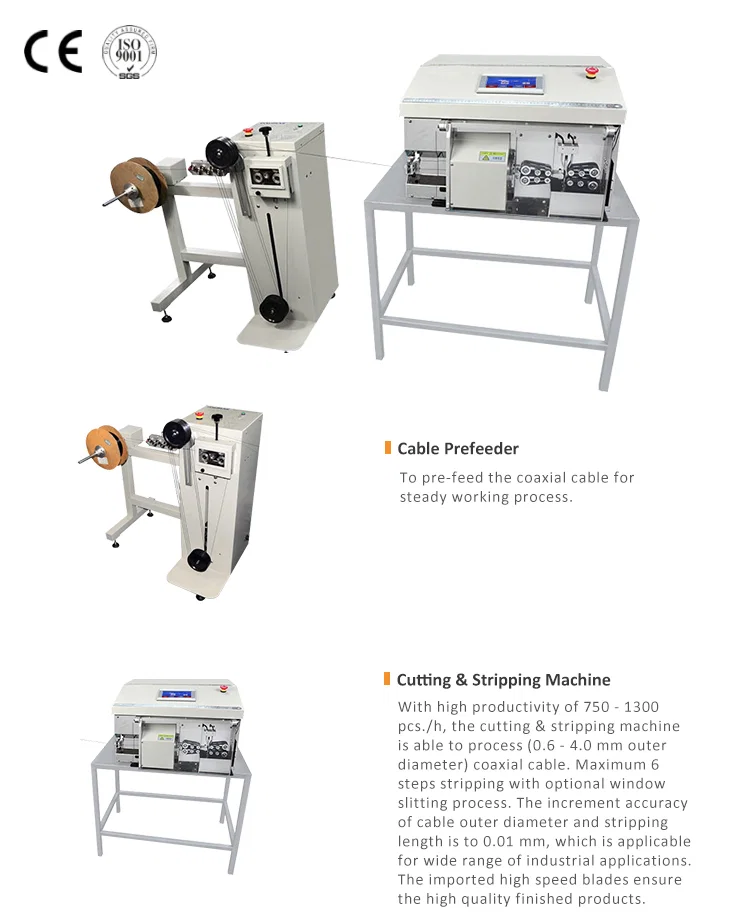

Coaxial cable cutting and Stripping Machine WPM-9800

coaxial cable-making equipment

Automatic Coaxial cable cutting stripping machine, Cable Stripping Machine, Coaxial Cable Stripping Machine, Stripping Machine

The characteristics explain :

mainly used for coaxial cable and special radix wire transform, choose the most advanced revolution rest, raised accuracy and velocity, adopt the particular axis clamping device and gyration tool angel method, the maximum could shell 9 F has never needed to replace knife blade to then liberalizing to establish to make controller towards the process to correspond the size and cortex electric wire, and equipping canning and incise wire diameter through a figure display.

Machinery specification:

Model	WPM -9800
wire capability OD	0.64-4mm
The maximum Strip	Left end:40(mm) Right end (un-limited)
Maximum strip layers	8 layers
Power supply	220V/50HZ P:380W
Cutting off length	10mm-9999mm
Cutting depth of the unit	0.01mm
Strip accuracy	±0.1mm
Display mode	7 inch LCD in English
The material range	Coaxial cable
Store data	60 parameters can be stored procedures
Drive mode	Motor, ball screw drive
Knife blade	2 pcs of the rotating cutter, material: tungsten steel material peeling blades 4 pcs high-speed steel
Productivity	850—1150Pcs/h
Power supply	220/110V 50Hz,60Hz
Weight	100(kg)
Features size	800700440mm
Working condition	0-50 degrees, the drying degree is just right, have no dither of workbench surface, drying degree just right workshop
