Coaxial cable stripping machine WPM-6806
Coaxial cable stripping machine WPM-6806
  • Coaxial cable stripping machine WPM-6806

  • Model No : WPM-6806
  • Coaxial cable stripping machine, Coaxial Cable Strip Equipments, Coaxial Cable Stripping Machines, Coaxial Cable Stripper
    Max. Stripping length 48mm
    Cutting depth 0.01mm
    Capacity 700-1200pcs/h (depends on wire material)
    Wire diameter 0.1-6.99mm
    Length accuracy ±(0.002*L) mm
    Max. stripping layer 9 layers
    Noise level <70dBA
    Display Touch Screen
  • Inquiry now
Detailed description Coaxial cable stripping machine, Coaxial Cable Strip Equipments, Coaxial Cable Stripping Machines, Coaxial Cable Stripper
Features
1. Suitable for different types of semi-flexible and flexible coaxial wires, charging cables, and medical wires' processing in communication and the medical industry. The stripping edge is smooth and no harm to the conductor.
2. Huma-computer interface, easy to operate and understand, Max. 9 layers of stripping and 99 sets of memory function.
3. Rotation blades head, four pieces of exquisitely designed blades improve stripping stability and blades' lifetime.
4. Adopt servo-motor, precision ball screw, and multi-point movement control system, working performance is stable and efficient.
5. Blades are made of imported tungsten steel and titanium alloy coating. sharp and durable.
6. This machine can meet multi-section stripping, stripping & twisting, automatic start in succession, and other special requirements.
Model WPM-6806
Max. Stripping length 48mm
Cutting depth 0.01mm
Capacity 700-1200pcs/h (depends on wire material)
Wire diameter 0.1-6.99mm
Length accuracy ±(0.002* L) mm
Max. stripping layer 9 layers
Noise level <70dBA
Display Touch Screen
Knife blade 2, material: Imports Switzerland tungsten steel
Centering slab 2, material: Imports tungsten steel
The clip-wire device automatically adjusts the core, the dynamo drives, and clip tight strength process control.
Delivery Information
Dimensions and weight 600*185*280mm 24KG
Power supply 220V/50HZ/ 110V/60HZ 400W
Port of Loading: XIAMEN/SHENZHEN
Lead time Normally in3-5days after the deposit received


Coaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper MachineCoaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper Machinesample display of Coaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper MachineCoaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper MachineCoaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper MachineCoaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper MachineCoaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper MachineCoaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper MachineCoaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper MachineCoaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper MachineCoaxial cable stripping machine, Coaxial Cable Strip Equipments, Coaxial Cable Stripping Machines, Coaxial Cable StripperCoaxial Cable Stripping Machine, Automatic Coaxial Cable Machine, Micro Coaxial Cable Stripping Machine, Coax Cable Stripping Machine, Coaxial Wire Stripper Machine, Wire Stripper, Coaxial Wire Stripping Machine, Coaxial Stripping Machine, Wire Stripper Machine

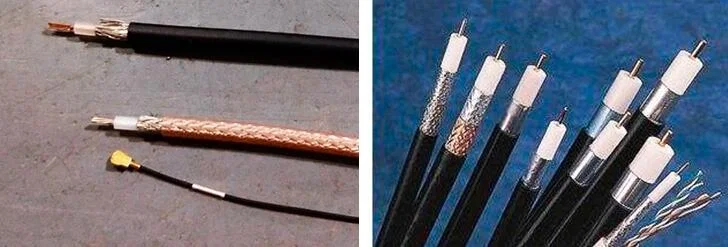

Coaxial cable stripping machine processing resultCoaxial cable stripping machine, Coaxial Cable Strip Equipments, Coaxial Cable Stripping Machines, Coaxial Cable Stripper





Model

WPM-6806

WPM-8608

WPM3512

WPM-4520

Wire Diameter

0.81-6.99mm

3.0-18mm

5mm-35mm

5.0-45mm

Cutting depth

0.01mm

0.01mm

0.01mm

0.01mm

Working efficiency

700-1200PCS/H

400-800PCS/H

200-500PCS/H

200-500PCS/H

Max. stripping length

48mm

90mm

120mm

200mm

Max. stripping layer

9 layers

9 layers

9 layers

9 layers

Dimensions

600*185*280mm

720*280*350mm

1040*280*550mm

1160*280*550mm

Weight

26kg

40kg

60kg

70kg

Power supply

220V/110V/50HZ/60HZ

220V/110V/50HZ/60HZ

220V/110V/50HZ/60HZ

220V/110V/50HZ/60HZ

Power rating

400w

500w

1000w

1000w

























If you are interested in this product, please send us your inquiry and we will reply to you ASAP!
