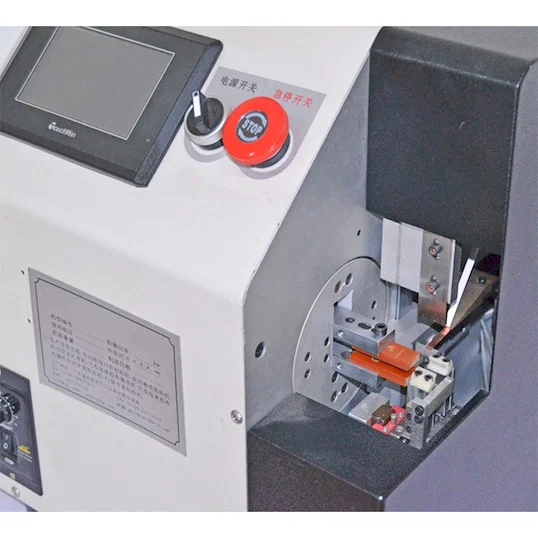

Copper Foil Tape Wrapping Machine for Cable and Wire WPM-TP
Copper Foil Tape Wrapping Machine for Cable and Wire WPM-TP Copper Foil Tape Wrapping Machine for Cable and Wire WPM-TP Copper Foil Tape Wrapping Machine for Cable and Wire WPM-TP Copper Foil Tape Wrapping Machine for Cable and Wire WPM-TP
  • Copper Foil Tape Wrapping Machine for Cable and Wire WPM-TP

  • Model No: WPM-TP
  • Copper Foil Tape Wrapping Machine for Cable and Wire, Cable Aluminum Tape Wrapping Machine, Copper Aluminum Foil Tape Wrapping Machine, Foil Tape Wrapping Machine For Shielded Wire
    Model WPM-TP
    Enveloped diameter up to 10mm (only for round wire)

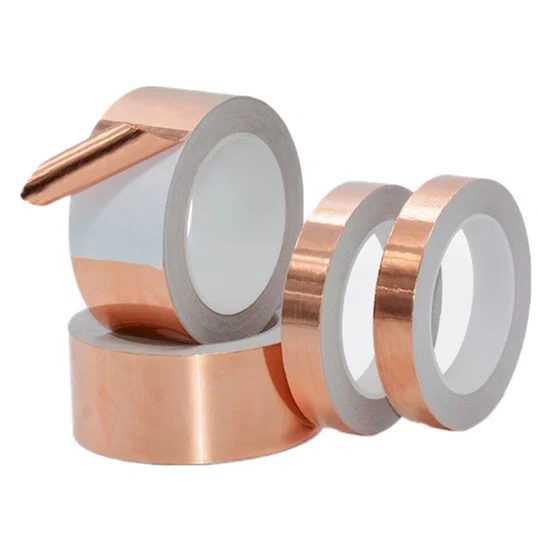

    Available copper foil tape the width is up to 12mm (the copper foil tape must have two layers and one layer of copper foil is used for scrap recycling)
    Efficiency 900 - 1200pcs/h
    Power supply 220V/50Hz 800W
    Air source Not less than 5KGf/cm2
    Dimensions 550 x360x390mm
    Weight 35kg

  • Inquiry now
Detailed description

 Copper foil tape wrapping machines are available for cable and wire applications, including those that require aluminum tape or copper-aluminum foil tape. Additionally, there are specialized machines designed specifically for shielded wire applications.

Silver linear slide, high-precision stepper motor, low wear, responsive, high efficiency

Using a PLC programming controller for precise control, the industrial-grade motor with high subdivision drive ensures stable, reliable and efficient equipment operation. The user-friendly interface is full-featured, easy to operate, quick and clear.

Model

WPM-TP

Enveloped diameter up

up to 10mm (only for round wire)

Available copper foil tape the

the width is up to 12mm (the copper foil tape must have two layers and one layer of copper foil is used for scrap recycling)

Efficiency

900 - 1200pcs/power

Power supply

220V/50Hz 800W

Air source

No less than 5KGf/cm2

Dimensions

550 x360x390mm

Weight

35kg
