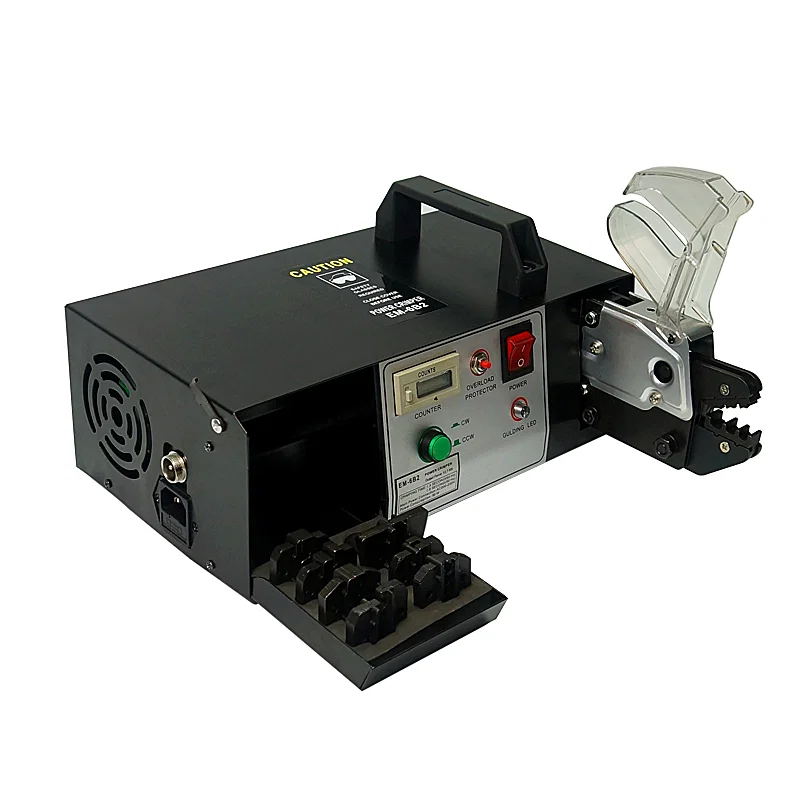

Electric Terminal Crimper EM-6B1

Name: Electric Terminal Crimper EM-6B1
Brand: High-Performance Cable Stripping Machines
SKU: EM-6B1 EM-6B2
Availability: InStock
Rating: 5 (1 reviews)

Model No 型号: EM-6B1 EM-6B2
The Electric Terminal Crimper EM-6B1/EM-6B2 provides electric crimping for terminals with models offering different force capacities. These crimpers ensure consistent and reliable electric crimps, enhancing efficiency and quality in terminal crimping for electrical connections.
Inquiry now 立即咨询

Detailed description | 产品细节

Crimp Tools Variety Of Terminals Equipped Electrical Type Terminal Crimping Machine EM-6B1 EM-6B2Crimp tools are available for a variety of terminals, and the EM-6B1 and EM-6B2 electrical terminal crimping machines are equipped to handle both terminal and cable crimping tasks.

The EM-6B terminal crimping machine is an ideal crimper for connection in the cabinet.

It is applicable for pre-insulated terminal crimping from 0.25mm² to 10mm² and Cu/AI cutting 7mm.

It is supplied with seven kinds of accurate and replaceable die sets. The crimper has high working efficiency and wide application.

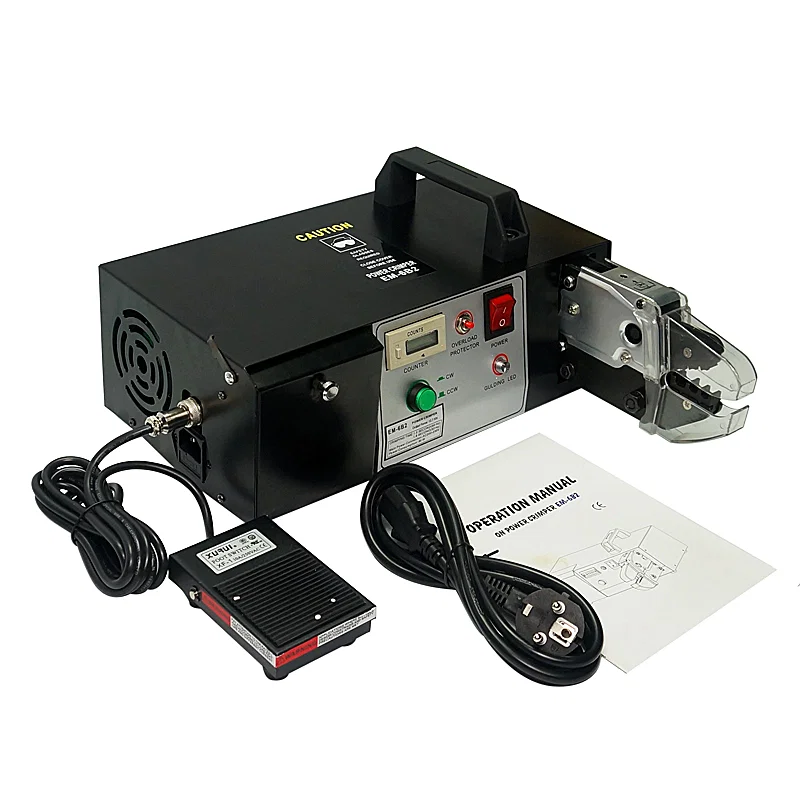

Don't worry about how to use the terminal crimping machine because it is packed with an English operation manual. Also, we can provide online technical support to you.

Model	EM-6B1 (110V)	EM-6B2 (220V)
Output	12.7KN	12.7KN
Max Crimping Force	Insulated Terminal 5.5mm²	Insulated Terminal 5.5mm²
Crimping Time	1.5s(60Hz)	1.5s(60Hz)
Crimping Time	1.8s(50Hz)	1.8s(50Hz)
Volts	AC100-125V	AC200-230V
Power Consumption	90W	90W
Dimension	325265150mm	325265150mm
Weight	12Kg	12Kg
