Auto Wire Processor WPM-81S
Model No: WPM-81S
The Auto Wire Processor WPM-81S provides automated wire processing, including cutting, stripping, and terminating. This machine enhances efficiency and precision in wire harness manufacturing, streamlining multiple steps for high-volume production.
Inquiry now

Detailed description

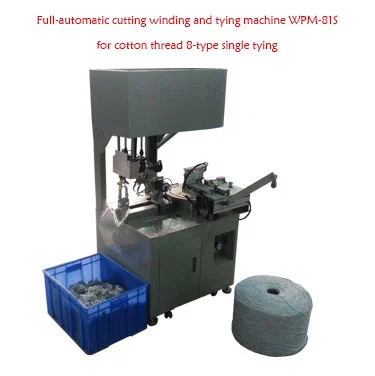

The WPM-81S is a fully automated machine designed for cutting, winding, and tying cotton thread of the 8-type single tying type. It can also be used as a Cable Bunching Machine, Cable Coiling Tying Machine, and Cable Cutting Winding Binding Machine.
The theoretical output of the machine is 1200pcs/h
Suitable for AC, DC wire winding appearance of an 8-word single tie
Servo of the main electric machine and stepping cutting line length ≤10M
Apply line diameter Φ 6.2 mm or less accuracy of 1 to 10 m + 10 mm cutting line
Voltage requirement: 210-240V 5A line cutting accuracy: 2 6m±6mm
Winding spacing 70-150mm cutting line accuracy of 3 2m±3mm
The power consumption is 1500W and the diameter is ≤40mm
Air volume: The air length of the head of the ordinary peeling machine is 0-100mm
The air pressure shall be 0.4-0.55mpa with a length of >mm at the end
Inch 750*1550*1850 winding speed adjustable
Suitable for the weight of the iron core of the rubber band 600KG
