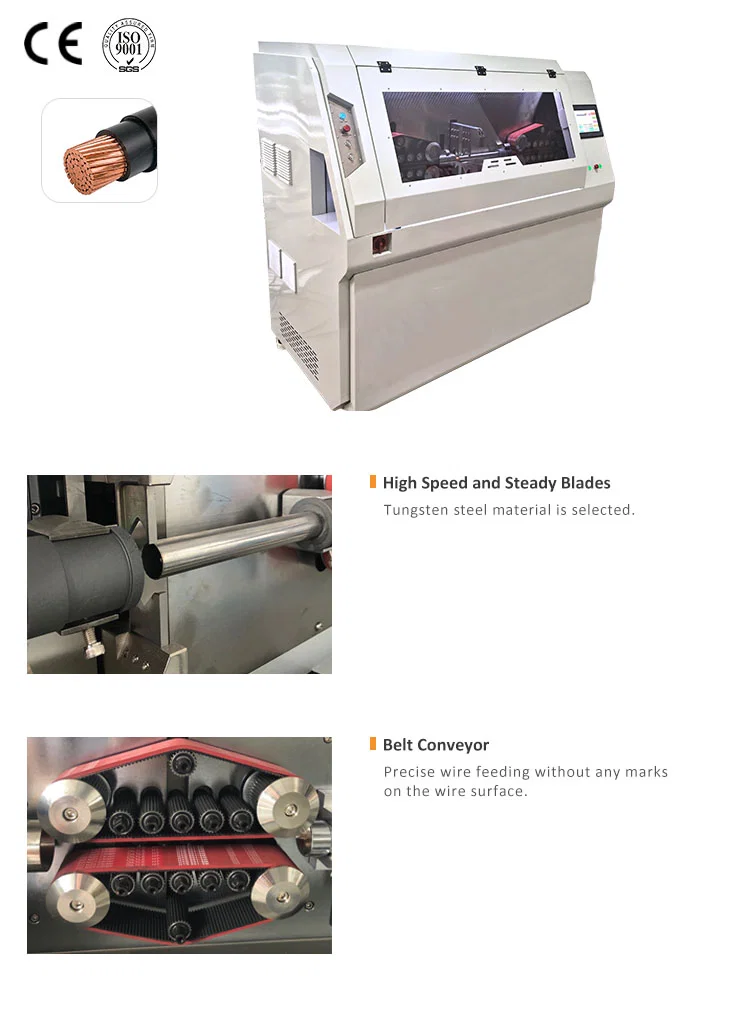

Heavy duty Cable Stripping and Cutting machine WPM-10-300mm
Model No : WPM-10-300mm and WPM-10-400mm
Heavy duty Cable Stripping and Cutting machine WPM-10-300mm and WPM-10-400mm
Heavy duty cable Cable Stripping and Cutting machine, wire stripper, cable cut and strip machine
Model WPM-10-300mm WPM-10-400mm
Wire material Wide range of industrial wires Wide range of industrial wires
Conductor cross-section 10 - 300 mm² 10 - 400 mm²
Cutting length 10 - 99,999.9 mm 10 - 99,999.9 mm
Cutting length tolerance 0.002 * L (L = cutting length) 0.002 * L (L = cutting length)
Stripping length (the side I) 1 - 1,000 mm 1 - 1,000 mm
Stripping length (side II) 1 - 300 mm 1 - 300 mm
Guide tube diameter 15 - 50 mm
Blade material High quality imported steel High quality imported steel
Display mode 10-inch touch screen 10-inch touch screen
Driving mode 32-roller driving 32-roller driving
Feeding mode By belts By belts
Remarks Special applications can be customized by sending samples
Inquiry now

Detailed description Heavy duty Cable Stripping and Cutting machine WPM-10-300mm and WPM-10-400mm
Heavy duty cable Cable Stripping and Cutting machine, wire stripper, cable cut and strip machine
Model WPM-10-300mm WPM-10-400mm
Wire material Wide range of industrial wires Wide range of industrial wires
Conductor cross-section 10 - 300 mm² 10 - 400 mm²
Cutting length 10 - 99,999.9 mm 10 - 99,999.9 mm
Cutting length tolerance 0.002 * L (L = cutting length) 0.002 * L (L = cutting length)
Stripping length (the side I) 1 - 1,000 mm 1 - 1,000 mm
Stripping length (side II) 1 - 300 mm 1 - 300 mm
Guide tube diameter 15 - 50 mm
Blade material High quality imported steel High quality imported steel
Display mode 10-inch touch screen 10-inch touch screen
Driving mode 32-roller driving 32-roller driving
Feeding mode By belts By belts
Remarks Special applications can be customized by sending samples
