Model |
WPM-KAC05B |
|
Stripping length |
8-12mm |
|
Speed |
1.5s/time |
|
Control method |
touch screen, electronic control, pneumatic control |
|

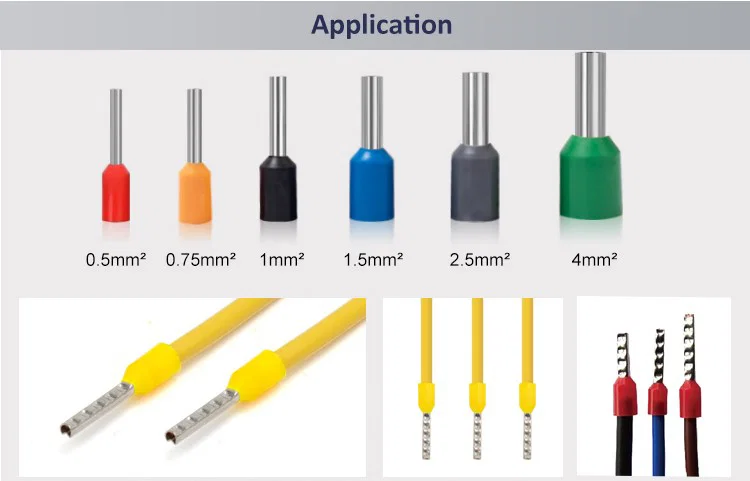

Applicable wire |
BVR hard wire: 0.5-4mm2, soft wire needs to be twisted: 0.5-2.5 mm2 |
|
Terminal supply |
vibration plate feeding |
|
Crimping method |
left and right horizontal crimping in parallel |
|
Rated power supply |
AC220V 50Hz |
|
Working pressure |
0.3-0.8MPA |
|
Working temperature |
-10/40℃ |
|
Weight |
about 30KG |
|
Dimension |
42cmx40cmx39cm |
