Name: Automatic Screw Feeder M1.0-M5.0
Brand: JINGWEI
SKU: WPM-1050H
Price: 1000.00 USD
Availability: InStock
Rating: 4.8 (89 reviews)

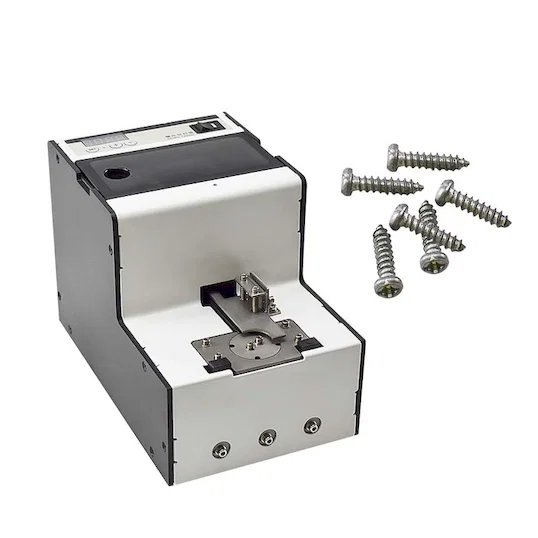

Automatic Screw Feeder M1.0-M5.0
Model No: WPM-1050H
The Automatic Screw Feeder M1.0-M5.0 automates screw feeding for screw sizes from M1.0 to M5.0. This feeder enhances efficiency in screw driving processes, providing a consistent supply of screws to screwdrivers and automated assembly systems, increasing throughput and reducing manual handling.
Inquiry now

Detailed description

Screw Feeder, Screw Feeding Machine, Screw Lock Machine
Automatic screw feeder, Factory working line screw locking feeding machine is suitable for screws whose screw diameter is M1.0-M5.0 mm and the tooth length is less than or equal to 20 mm. It is especially suitable for precise screws such as locks and mobile phones.
Adopt the original vibration motor from Japan, and the vibration amplitude is in a linear state, ensuring the smooth and stable moving state of screws.
Product Model WPM-1050H
Ambient temperature -10 degrees to 40 degrees
Applicable specifications Screw diameter M1.0-M5.0, thread length less than 20 mm
Feeding efficiency 0.5s/pcs
Positioning accuracy 0.01 mm
Power consumption 25W
Feeding method Turntable impeller loading
Power supply AC220V 50HZ to 12V
Weight 3KG
Dimension 25*15*18 cm
Screw Feeder, Screw Feeding Machine, Screw Lock Machine

Automatic Screw Feeder M1.0-M5.0

Model No: WPM-1050H

The Automatic Screw Feeder M1.0-M5.0 automates screw feeding for screw sizes from M1.0 to M5.0. This feeder enhances efficiency in screw driving processes, providing a consistent supply of screws to screwdrivers and automated assembly systems, increasing throughput and reducing manual handling.
