The Pneumatic Tubular Crimper T6-4 is a pneumatic crimping tool designed for tubular terminals for wires 6-4 AWG. This tool provides powerful and consistent pneumatic crimping for large tubular terminals, ensuring secure and reliable crimped connections for heavy-duty electrical wiring.

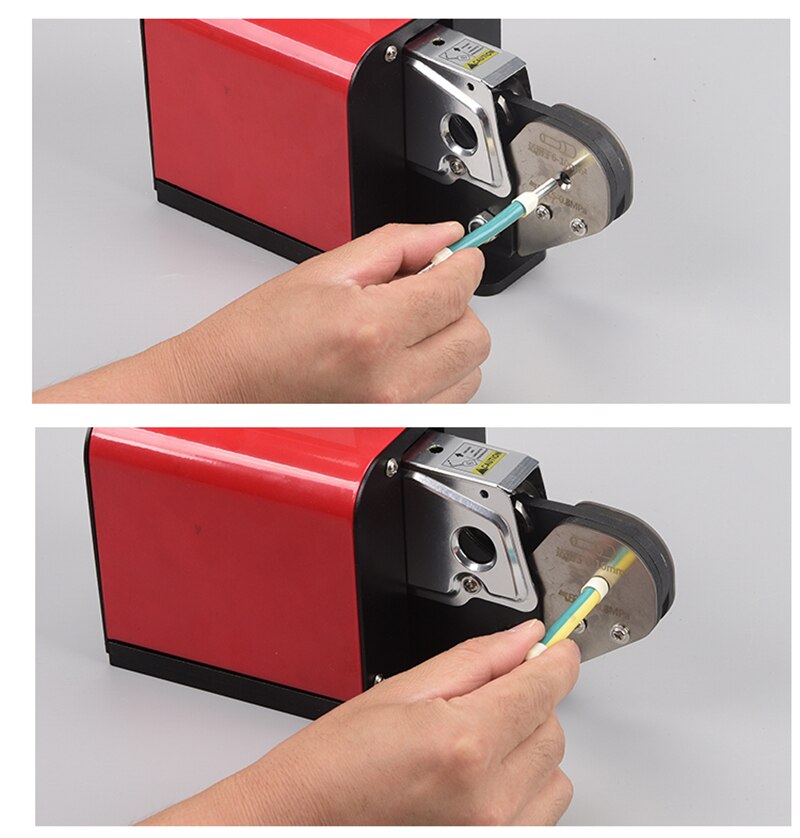

Pneumatic Tubular terminal Crimping Machine
The machine is driven by dual-action normal cylinder, which has ad-vantages of high efficiency and quality in crimping force and speed. The machine is fit for crimping insulated and non-insulated cable end-sleeves

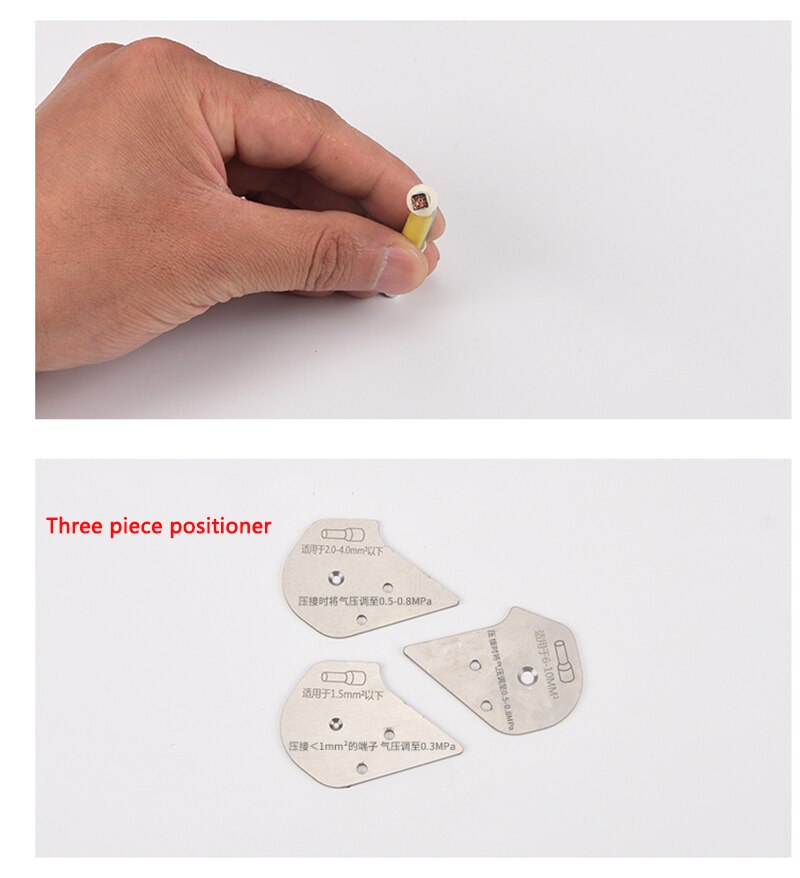

1.The traditional fixed mould is replaced by the hexagonal crimping mould , which may per form flexible crimp connection to tubular insulated terminals
2.Since the hexagon can be adjusted steplessly . the crimping specification can be set freely within 0.08-6mm .
3.After crimping , the terminals look beautiful in hexagon without any flash edge
descriptionT6-4
range of application crimping Tubular terminal 0.08-10mm2
output force 13.5KN
applicable air pressure 0.3-0.08MPa
xternal dimension 260mm*120mm*140mm
weight 5.52kg
