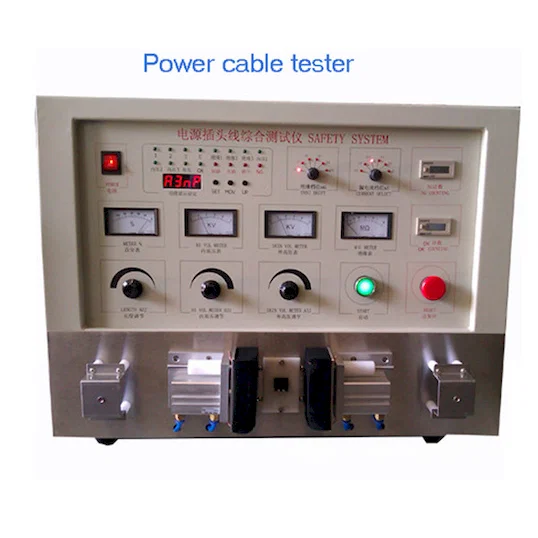

Power cord cable harness tester WPM-8683
Power cord cable harness tester WPM-8683
  • Power cord cable harness tester WPM-8683

  • Model No : WPM-8683
  • Power cord cable harness tester,Wiring Harness Test Machine, Wiring Harness Connection Testing Machine, Power Cord Plug Cable Tester
    1 Polarity: Break over, short circuit, open circuit, dislocation
    2 Leakage current setting Range: 0.5, 1.0, 2.0, 3.0, 5.0, 10mA
    3Internal High-Voltage Output:0---5KV(500VA) Adjustable
    4 External High-Voltage Output: 0---5KV(500VA) Adjustable
    5 Operating Voltage:220VAC 12A 5060 HZ
    6 High-voltage range: 0-5KV
    7 Resolution: 0.5 level
    8 Output Voltage: DC500V
    9 Insulation resistance Range: 2, 7, 20, 50, 100, 200 MΩ
    10 Resolution: 0.5 level
    11 Voltage withstand time
    12 Timing Range: 0.1-99.9/S
    13 Min time for item measuring: 0.3S
    14 Wire sensitivity : >10pF
    15 Barometric Pressure : <4 Kg f / cm2
    OK Product: Automatic printing and ejection, counting, and indicator ON
    NG Product: Automatic modulus locking, counting, indicator ON, and buzzer ringing
    16 Size and Weight: 730*530*500 mm
    17 Weight:: 80 KG
    Other Functions: Automatic cutting of defective products and alarm with voice prompt and light
    safeguard: electric leakage, Short circuit, overheating

  • Inquiry now
Detailed description Power cord cable harness tester WPM-8683, Wiring Harness Test Machine, Wiring Harness Connection Testing Machine, Power Cord Plug Cable Tester
Description
Usage:
1.Meet UL, VDE, CSA, SAA, T-MARK, KS. IRAM, CCC, and other countries' standards.
2. used to test single–ends, double–ends, and three-ends power supply cords.
3. Auto and continuous test in COND, Insulation Resistance, Leakage Current, Line-to-line Hi-pot(inside HV), Leaking copper(outside HV),  and relative length.
5. Auto test the fine and detective goods, tested qualified ones can be ejected by ejector pin and marked, automatically cutting  defective  products, and alarmed with voice prompt and light,
6. Provide RS 232 interfaces, that can communicate with PC, are easy to upgrade,
7. Provide personalized customization according to different requirements.

Specification

1 Polarity: Break over, short circuit, open circuit, dislocation
2 Leakage current Setting Range: 0.5, 1.0, 2.0, 3.0, 5.0, 10mA
3Internal High-Voltage Output:0---5KV(500VA) Adjustable
4 External High-Voltage Output: 0---5KV(500VA) Adjustable
5 Operating Voltage:220VAC 12A 5060 HZ
6 High-voltage range: 0-5KV
7 Resolution: 0.5 level
8 Output Voltage: DC500V
9 Insulation resistance Range: 2, 7, 20, 50, 100, 200 MΩ
10 Resolution: 0.5 level
11 Voltage withstand time
12 Timing Range: 0.1-99.9/S
13 Min time for item measuring: 0.3S
14 Wire sensitivity : >10pF
15 Barometric Pressure : <4 Kg f / cm2
OK Product: Automatic printing and ejection, counting, and indicator ON
NG Product: Automatic modulus locking, counting, indicator ON, and buzzer ringing
16 Size and Weight: 730*530*500 mm
17 Weight:: 80 KG
Other Functions: Automatic cutting of defective products and alarm with voice prompt and light
safeguard: electric leakage, Short circuit, overheating

Power cord cable harness tester WPM-8683
If you are interested in this product, please send us your inquiry and we will reply to you ASAP!
