  • Tape Wrapper with Pull Wire WPM-303K

  • Model No: WPM-303K

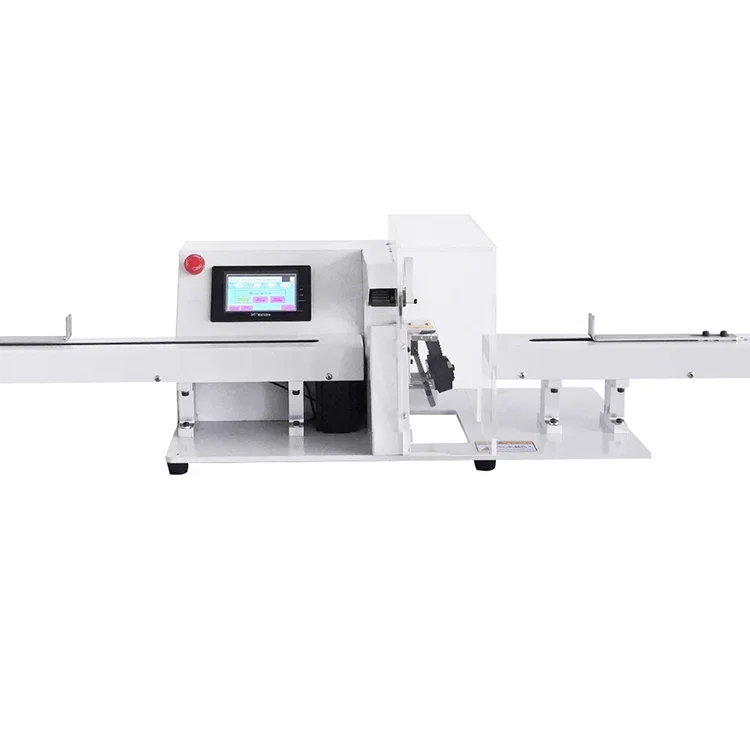

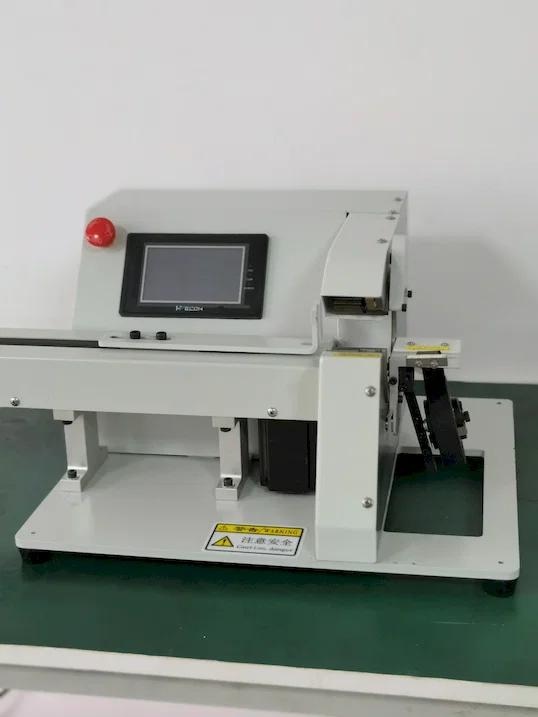

  • The Tape Wrapper with Pull Wire WPM-303K automates tape wrapping and pull wire insertion in one process. This machine streamlines cable harnessing, providing both insulation and a pull wire for easy cable routing and installation.

  • Inquiry now

Detailed description

Taping wrapping machine with a pull-wire, Winging Machine, Tape Winding Machine, Automatic Tape Winding Machine
Taping method: spot taping, continuous taping

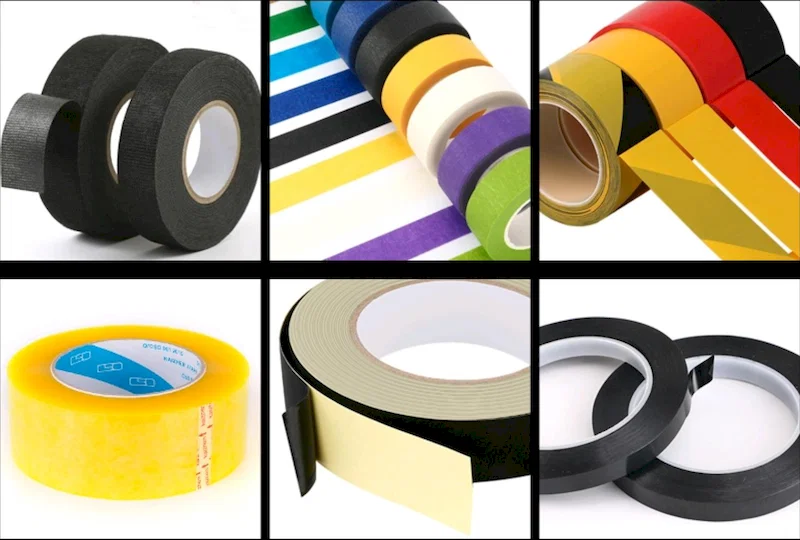

Compatible with different types of tape materials without release paper, such as Flannel tape, acetate tape, electrical tape, polyester tape, etc.
Flat, no wrinkles, the winding of the cloth tape is overlapped with the previous circle by 1/2

Model

WPM-303K

Wire pulling length

1,050mm ((longer can be customized)

Taping density

adjustable

Taping method

spot taping, continuous taping

Applicable tape

Flannel tape, acetate tape, electrical tape, polyester tape, etc.

Tape width

5-25mm (other sizes need to be customized)

Tape inner hole size

Ф37Ф32

Host speed (ret/min)

300-2,500 continuously adjustable

Weight

36KG

Power supply

AC220V/DC24V  50/60HZ

Dimension

1,470mm*380mm*280mm (LxWxH)

 Taping wrapping machine with pull wire WPM-303K, Winging Machine, Tape Winding Machine, Automatic Tape Winding Machinetape of Taping wrapping machine with pull wire WPM-303K, Winging Machine, Tape Winding Machine, Automatic Tape Winding Machine
