The online version of the 8-word single tie type automatic winding tie
The online version of the 8-word single tie type automatic winding tie The online version of the 8-word single tie type automatic winding tie
  • The online version of the 8-word single tie type automatic winding tie

  • Model No : WPM-URT-81M

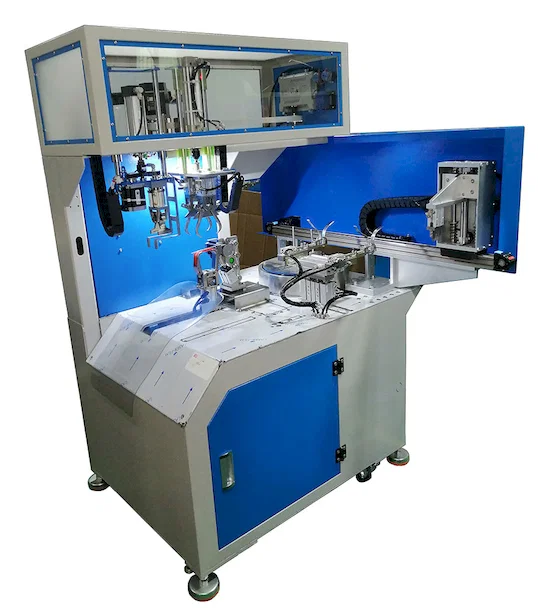

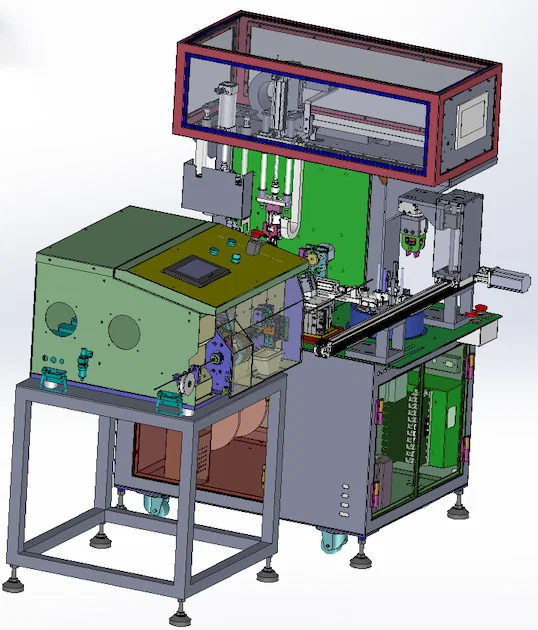

  • 8-word single tie type automatic winding tie machine WPM-URT-81M
    Applicable wire diameter ≤10mm
    Cutting length 1-5m
    Cutting line length accuracy: ±2mm/m
    Winding the appearance of the 8-figure single cable tie
    The spacing of winding is 80-200mm
    Binding diameter ≤40mm
    The retention length of the head is less than or equal to 130mm
    Tail length ≤200mm
    Production efficiency: ≤1300/H (1-5m)
    Applicable binding tape: Coated iron core ≤ 7.5kg/roll
    Applicable air pressure: 0.5-0.6mpa
    Power supply: NATIONAL standard 220V/50Hz
    Machine power: 3.5KW/H
    Machine size: about 1200L*1500W*1600Hmm
    Machine weight: about 300KG
  • Inquiry now
Detailed description The online version of the 8-word single tie type automatic winding tie machine WPM-URT-81M
Technical parameters:
Applicable wire diameter ≤10mm
Cutting length 1-5m
Cutting line length accuracy: ±2mm/m
Winding the appearance of the 8-figure single cable tie
The spacing of winding is 80-200mm
Binding diameter ≤40mm
The retention length of the head is less than or equal to 130mm
Tail length ≤200mm
Production efficiency: ≤1300/H (1-5m)
Applicable binding tape: Coated iron core ≤ 7.5kg/roll
Applicable air pressure: 0.5-0.6mpa
Power supply: NATIONAL standard 220V/50Hz
Machine power: 3.5KW/H
Machine size: about 1200L*1500W*1600Hmm
Machine weight: about 300KG

Main components:
Cylinder: Yadeke cylinder and solenoid valve,
Motor: Winding servo motor 1500W Turbot
Motor: line translation servo motor 750W Turbot
Motor: Feeding belt 57 closed-loop motor lightning race
Motor: Twisted tie belt 57 stepper motor thunder race
Motor: storage tape motor 6W fixed speed
Take line translation: double slider
Linear module: closed-loop + linear guide
PLC: vigor
Screen: dimension control 7 inches
Power supply: clear weft
Frame: iron frame, blue and white, painted
Wire grab/twisting claw/lower claw Material: stainless steel
Lack of material alarm 1: a large volume of incoming material is exhausted, three-color lamp buzzes
Lack of material alarm 2: ribbon exhausted, three-color lamp buzzes
Drive system: high-reliability servo system, a control system for the high-speed stable industrial controller and system software, Chinese and English bilingual version.




If you are interested in this product, please send us your inquiry and we will reply to you ASAP!
