Touch Screen Wire Stripper 0.1-10mm²
Model No: WPM-JE2S
The Touch Screen Wire Stripper 0.1-10mm² is a precision touch screen wire stripper for тонкий to medium gauge wires from 0.1 to 10mm². This advanced stripper offers precise control and adjustments via a touch interface, ensuring accurate and damage-free stripping for a wide range of wire sizes.
Inquiry now

Detailed description

Our WPM-JE2S wire stripping and cutting machines feature touchscreen controls and are designed for 0.1-10mm2 wires. They offer automatic cable cutting and stripping capabilities, making them an ideal choice for any wire stripping application.
The product function characteristics:
Collection and integration, the microcomputer automatic computer for the stripline machine is a kind introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
Our product is to use LCD screen man-machine dialogue mode, with a nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. The wire length can be set arbitrarily, thrum and the line end parameters can also be according to the customer's request to change, different degrees of finish stripping wires, also has the high tension line of line, the casing of the shear, etc. Function

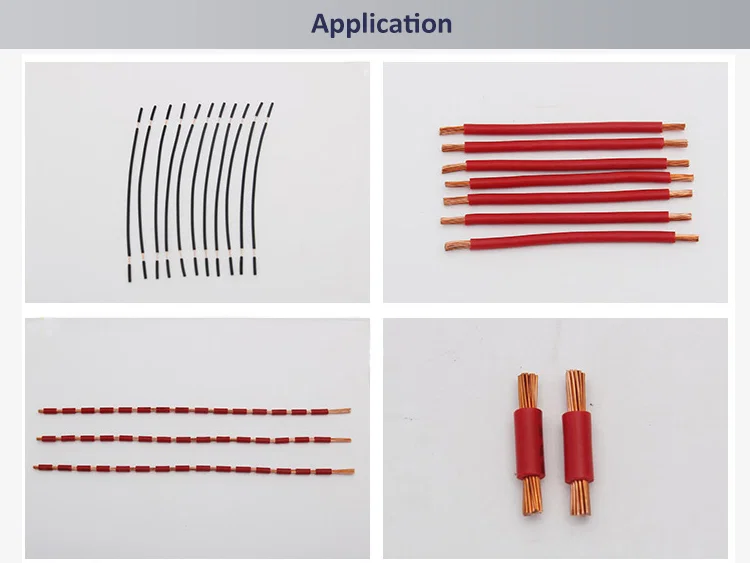

Applications:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, Teflon, glass wire, etc.

Technical parameters:
Model WPM-JE2S
Voltage AC 220V/110V 50/60 Hz
Power 300W
Cutting length 1-9999 mm
Cutting tolerance (0.2+/- 0.002 by L) mm
Cut off the error can be modified
Stripping length Front end 0-50mm, Rear end 0-50 mm
Middle strip cut 11 place strip
Cutting wire core section 0.1-10mm2 (AWG7 #-AWG28 #)
Max cut diameter 10
Optimal stripped wire For PVC/Teflon/silica gel line /. Glass fiber cables, etc.
The blade material is Hard tungsten steel (import BaiGang optional)
Peel linear velocity (a/hour) L = 100 mm, 3000-5000 PCS/h (high yield)
