Ultrasonic Wire Welder WPM-X00
Model No: WPM-X00
The Ultrasonic Wire Welder WPM-X00 is an advanced ultrasonic wire welder for efficient and reliable wire splicing. This machine offers enhanced welding power and control, ensuring robust and high-quality wire splices for demanding electrical and electronic applications.
Inquiry now

Detailed description

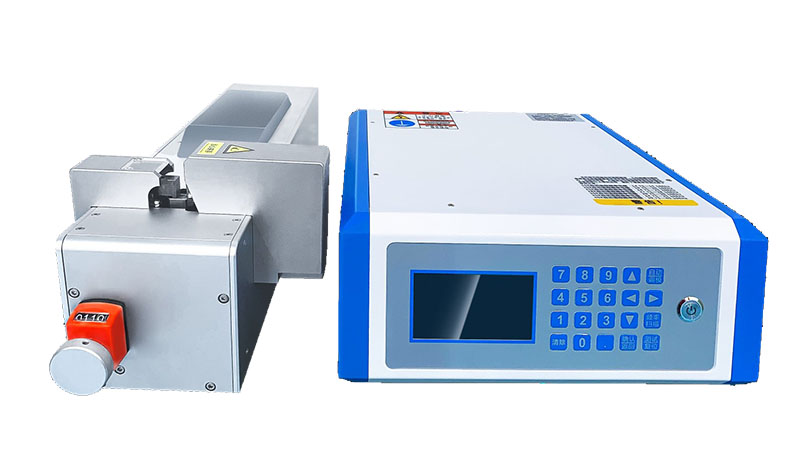

Ultrasonic wiring harness welder WPM-X00
1.1 Equipment Overview
ultrasonic wiring harness welding machine is an economical portable welding machine designed as a whole machine. It has the advantages of exquisite and lightweight appearance, small footprint, safe and simple operation, and low maintenance cost. It can provide enterprises with efficient welding methods and reduce production costs. It is suitable for 0.35mm² - 12mm² copper wire/aluminum wire harness welding, in the automobile, instrumentation, communication equipment, household appliances and other fields are widely used.

1.2 Equipment features
High quality ultrasonic transducer, strong power, good stability
Welding speed is fast, high energy efficiency, can be completed within 10s of a welding
Easy to operate, no need to add auxiliary materials
Multiple welding modes are supported
Prevent air welding and effectively prevent welding head damage
Hd LED display, intuitive data, real-time monitoring, effective guarantee of welding yield

1.3 Welding effect display

1.4 Technical parameters of equipment
Equipment model number WPM-X00
Operating frequency 20KHz
Rack size 573*220*190(mm)
Chassis dimensions 345*477*155(mm)
Input voltage AC 220V/50Hz
Weld the square of the harness 0.35mm² -- 12mm² copper wire and aluminum wire
Welded copper wire (aluminum wire) diameter Φ 0.3 mm or less
Equipment power 3000W
Equipment weight 25kg(welding rack)+10kg(electric box)
Display mode 4.3 "LCD screen + key adjustment control
Production efficiency About 0.6s/ time, depending on the square of the weld
Core piece Generator, transducer, welding head
Moving parts Cylinder

1.5 Equipment construction

1.6 Application Fields
