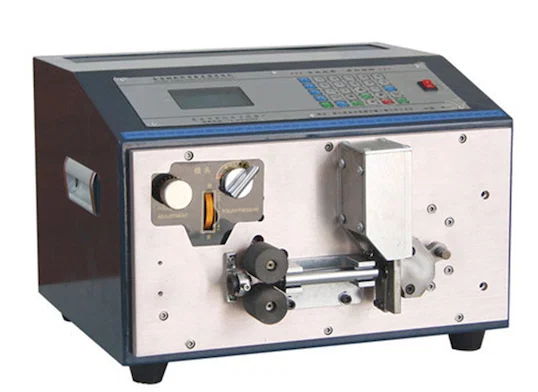

25mm2 Wire cutting stripping and bending machine WPM-25ZWJ
- Model No : WPM-25ZWJ
- 25mm2 Wire cutting stripping and bending machine WPM-25ZWJ,Wire Cutting Stripping Bending Machine, Strip Wire Bending Machine, Cabel Stripping Bending Machine
This high-performance wire-cutting stripping and bending machine can process a wide range of wires and cables. It can strip both ends of the wire and bend the wire to your requested angle.
Product Description
Specification
Model Number WPM-25ZWJ
Name Automatic wire cutting stripping bending machine
Function for cutting, stripping, and bending.
Bending Shape U, Z, clockwise, Angle 30° 45°60°90°
Cutting Length 1-9999mm
Stripping Length Front: 1-50mm; rear: 1-30mm
Voltage 220V/110V
Power Rate 650W
Cutting tolerance (0.2+/- 0.002 by L) mm
Cutting Stripping wire core section 1-25mm²
Optimal stripped wire: PVC// silica gel line, Glass fiber cables, etc.
The blade material: hard tungsten steel
Output L = 100 mm, 2000- 3000PCS/h (high yield)
Weight 33kg
Dimension 400*515*345（mm） - Inquiry now
25mm2 Wire cutting stripping and bending machine WPM-25ZWJ, Wire Cutting Stripping Bending Machine, Strip Wire Bending Machine, Cabel Stripping Bending Machine
This high-performance wire-cutting stripping and bending machine can process a wide range of wires and cables. It can strip both ends of the wire and bend the wire to your requested angle.
Product Description
Specification
Model Number WPM-25ZWJ
Name Automatic wire cutting stripping bending machine
Function for cutting, stripping, and bending.
Bending Shape U, Z, clockwise, Angle 30° 45°60°90°
Cutting Length 1-9999mm
Stripping Length Front: 1-50mm; rear: 1-30mm
Voltage 220V/110V
Power Rate 650W
Cutting tolerance (0.2+/- 0.002 by L) mm
Cutting Stripping wire core section 1-25mm²
Optimal stripped wire: PVC// silica gel line, Glass fiber cables, etc.
The blade material: hard tungsten steel
Output L = 100 mm, 2000- 3000PCS/h (high yield)
Weight 33kg
Dimension 400*515*345（mm）
Warranty 1 year
