Cable stripping machine WPM-09D
- Model No : WPM-09D
- Cable stripping machine, Wire Cutting Machine, Automatic Stripping Machine WPM-09D
Wire cross-section: 0.1-8.0sq.mm
Conduit diameter: 10mm
Stripping length: Head side 0-50mm
Tail side 0-50mm
Cutting length: 1-9999mm
Measurement: 39*35*25cm
cable stripping machine - Inquiry now
Features:

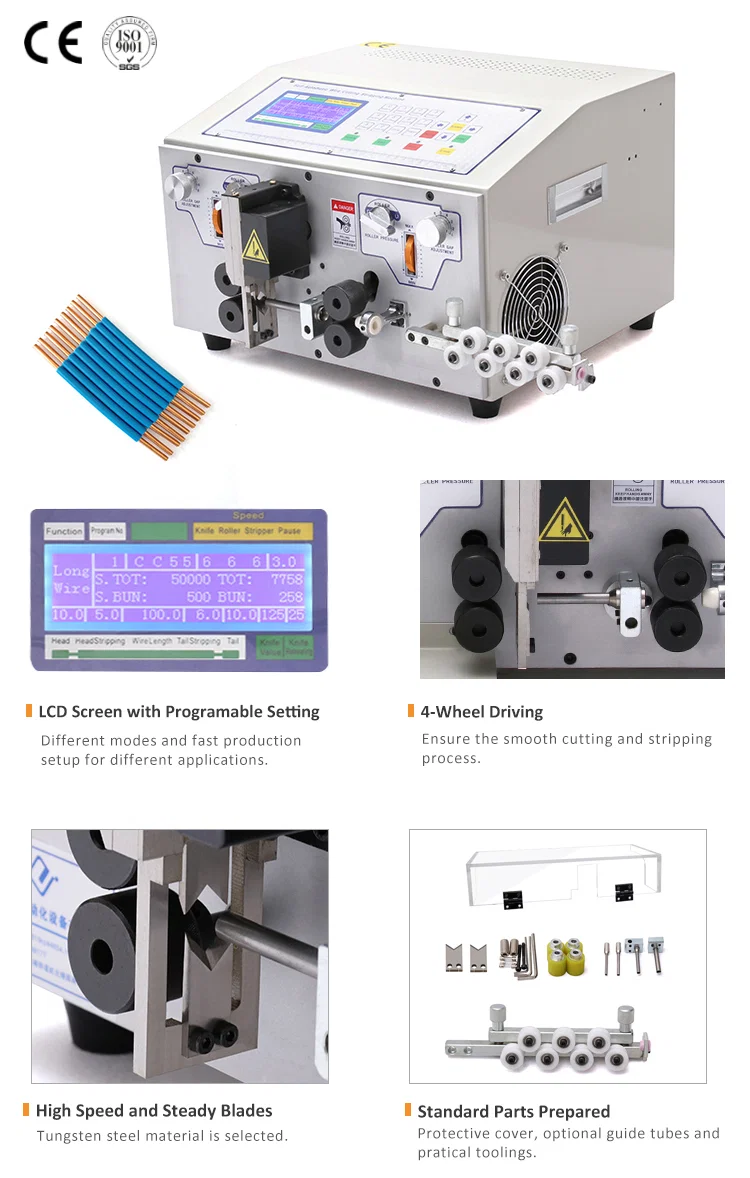

Automatic Full Computer Wire Stripping Machine
Adopt advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.
cable stripping machine
Apply for:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
cable stripping machine
Specification:
cable stripping machine
Available Wire Cross-Section Range: 0.1～8.0mm2(AWG8#-AWG32#)
Conduit Diameter: ￠10mm
Cutting Length: 1～9999mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0~35mm, tail 0~15mm
Middle Stripping Section: Max 11
Speed: 3000-5000pcs/h
Display Way: English LCD
Drive Mode: 4 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 300W
Measurement: 390X350X255mm
Weight: 32kg
|
Model |
WPM-09D |
WPM-09JE |
WPM-09JE |
|
Wire material |
PVC, teflon, fiberglass wire... |
PVC, teflon, fiberglass wire... |
PVC, teflon, fiberglass wire... |
|
Conductor cross-section |
0.1 - 8.0 mm² (32 - 8 AWG) |
0.1 - 8.0 mm²(32 - 8 AWG) |
0.1 - 10 mm²(32 - 7 AWG) |
|
Cutting length |
1 - 99,999 mm |
1 - 99,999 mm |
1 - 100,000 mm |
|
Cutting length tolerance |
0.002 * L |
0.002 * L |
0.002 * L |
|
Stripping length |
Side I: 0 - 35 mm Side II: 0 - 15 mm |
Side I: 0-50mm Side II: 0 - 50 mm |
Side I: 0 - 80 mm Side II: 0 - 80 mm |
|
Maximum guide tube diameter |
8 - 10 mm |
8 - 10 mm |
13 mm |
|
Productivity |
33 - 83pcs/min |
33-83pcs/min |
50-133pcs/min |
|
Noise level |
< 70 dB(A) |
< 70 dB(A) |
< 70 dB(A) |
|
Power supply |
110, 220 V (50 - 60 Hz) |
110, 220 V (50 - 60 Hz) |
110, 220 V (50 - 60 Hz) |
|
Power |
300 W |
300 W |
500 W |
|
Gross Weight |
34 kg |
34 kg |
34 kg |
|
Carton dimension |
537 * 507 * 400 mm |
537 * 507 * 400 mm |
537 * 507 * 400 mm |
