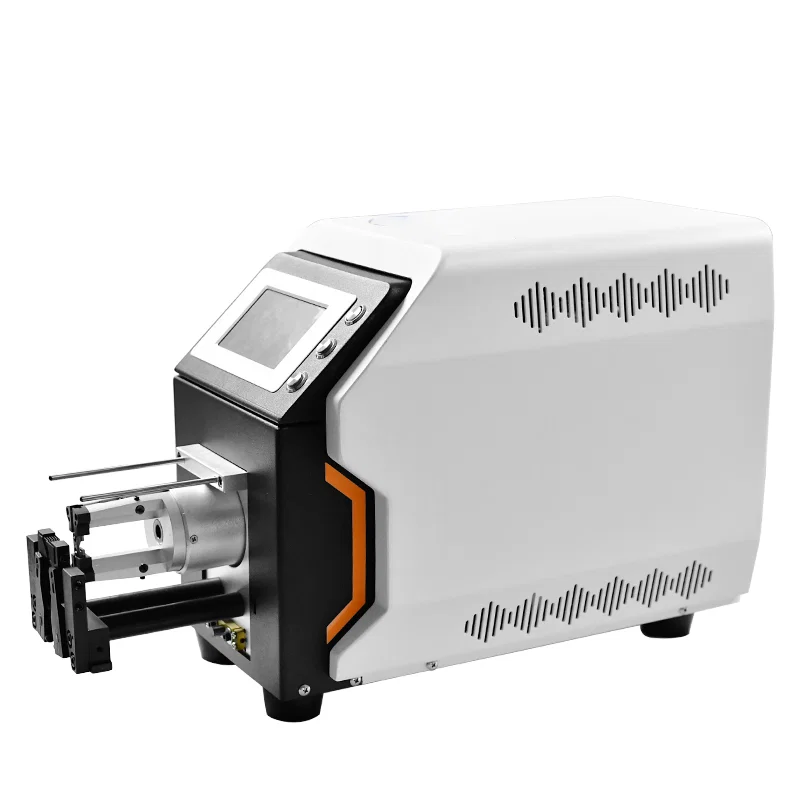

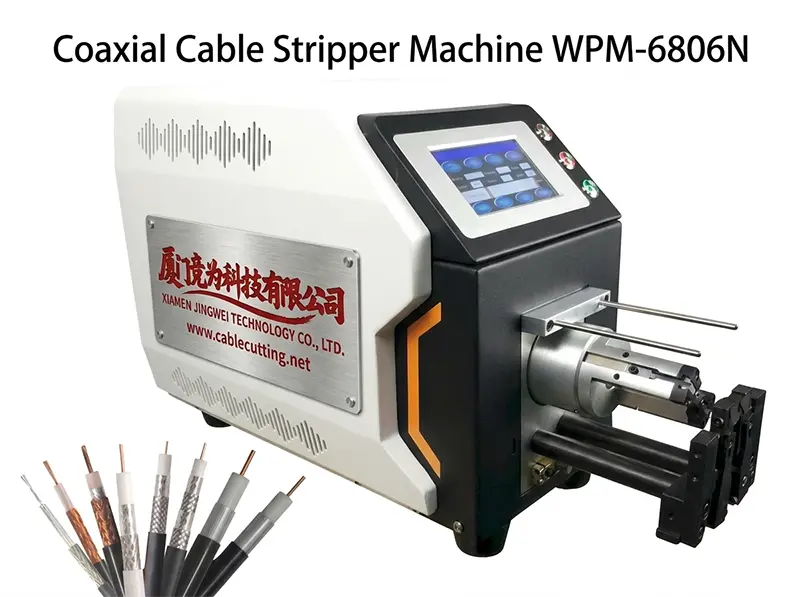

Coaxial Cable Stripper WPM-6806N

Detailed description | 产品细节

The coaxial cable stripping machine has been designed to strip coax cables with ease and precision, making it an essential tool for any professional in the industry.

This model is a semi-auto servo motor coaxial wire stripping machine, suitable for shielding cable, coaxial cable, multi-core inner wire, and single-core wire with easy operation and high precision.
Product Features
- Suitable for all kinds of semi-flexible and flexible coaxial cable, charging cable, medical wire, and multi-layer precision stripping, with no damage to the wire core
- HMI touch screen, easy to understand and operate. It can peel up to 9 layers and store up to 99 machining parameters
- The use of a rotating head, and well-designed blades, improve the stability and service life of the blade
- Servo motor, precise ball screw, and multi-point motion control system are adopted to ensure stable and efficient working performance

- The blades adopt imported tungsten steel and titanium alloy layer, sharp and durable
Model WPM-6806N
Wire Range Diam 1-7mm
Stripping Length 0.1mm-50mm
Max stripping layers 9 layers
Cutting Depth Unit 0.01mm
Blade Tungsten
Productivity 700-1200pcs/h
Power AC220/50Hz AC110/60Hz
Weight 30kg
