Name: DIGITAL CUTTING MACHINE WPM-6100
Brand: JINGWEI
SKU: WPM-6100
Price: 1000.00 USD
Availability: InStock
Rating: 4.8 (89 reviews)

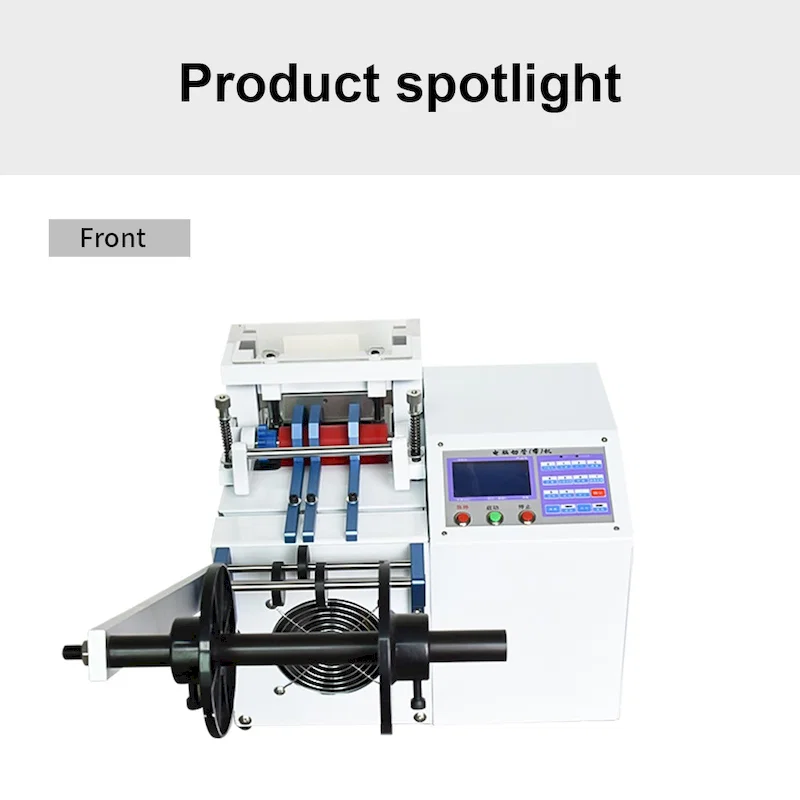

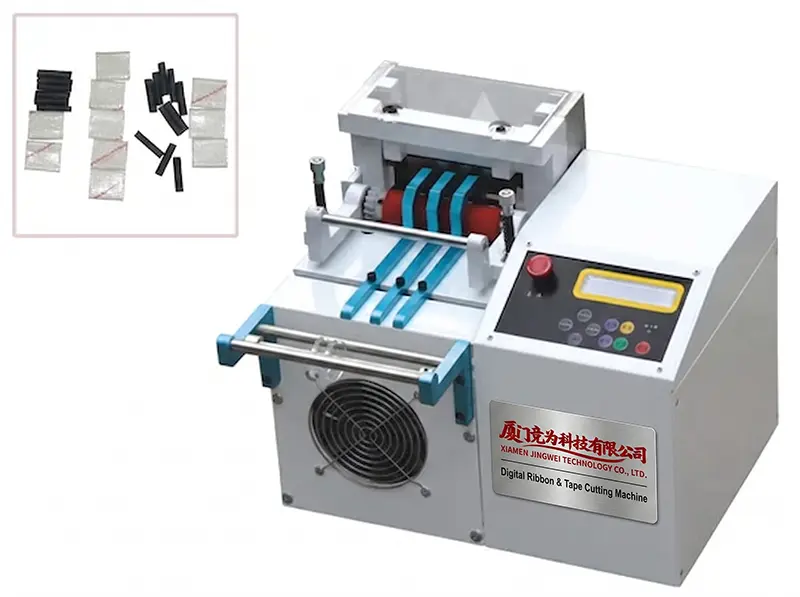

DIGITAL CUTTING MACHINE WPM-6100
Model No: WPM-6100
DIGITAL CUTTING MACHINE WPM-6100,Ribbon Cutting Machine, Nylon Tape Cutting Machine, Trademark Cutting Machine
1. Cutting length: 1-99999mm
2. Cutting width:1-100mm,1-120mm, 0-160mm, 0-200mm(we can customize a wider)
3. Cut-off speed:100-120pcs/Min
4. Memory Function: Can store Max. 100 group programs
5.Accuracy:±0.1mm(Depends on the material)
6.Supply voltage;220V/50HZ,110V/60HZ
7.Power：60W
8.Net Weight：35KG Gross weight:45KG
9.Dimension： L400*W300*H430 mm
Inquiry now

Detailed description

DIGITAL CUTTING MACHINE WPM-6100, Ribbon Cutting Machine, Nylon Tape Cutting Machine, Trademark Cutting Machine
Range of application
Digit cutting machine is suitable for heat-heat-shrinkable tubing, Teflon tube, fiberglass pipe, PVC pipe, PE pipes, Silicone tubes, oilproof tubes, PET tubes, Fluorine plastic pipes, Erosion-resistant pipes, Yellow-green tubes, Floral tubes, Thick wall sheathed, Double-wall corrugate pipe, Mark tube, Electrolytic capacitor PVC set, PVC plastic strip, Flat cable, Ribbon, Plastic hose, Insulating paper, Copper foil, Copper sheet, Double faced adhesive tape, PE bag film,
leather, Non-woven fabric, Acetate cloth, Rubber blanket, cotton yarn belt, Seat belt, Elastic cord, Color bars, magic tape, package crawler, polybag, Battery Separator, Nickel, a diffusion sheet, Reflect sheet, Conductive fabric, Tongue foam, PET, VELCRO, Zipper, Etc. ribbon pattern or hose pattern.
The machine parameters
1. Cutting length: 1-99999mm
2. Cutting width:1-100mm,1-120mm, 0-160mm, 0-200mm(we can customize a wider)
3. Cut-off speed:100-120pcs/Min
4. Memory Function: Can store Max. 100 group programs
5.Accuracy:±0.1mm(Depends on the material)
6. Supply voltage;220V/50HZ,110V/60HZ
7.Power：60W
8.Net Weight：35KG Gross weight:45KG
9.Dimension： L400*W300*H430 mm

Product Features:
* High-speed feeding, Digit cutting machine by microcomputer program control, Accuracy can arrive 0.1mm

* Cutting speed is adjustable, English LCD.
* Any continuous adjustable length and speed
* Automatic grouping of the cumulative and total cumulative count
* Batch pause and delay time can be set
* There is no feed automatic stop
* Can automatically cut all kinds of tubes, Ribbon material?
* High-speed precise stepper motor control in cutting length
* The cutting time protection, Amount setting, The bundle setting, The bundle pause time pause
* All kinds of manual operation, convenient debugging
* Digit cutting machine LCD for large-size screen display, Operation simple and convenient
* Using special mechanical structure and special cutters, With dedicated software control, Solved the problem of silicone tube incision uneven.

Computer cutting machine mechanical parts of the body are made of durable cast iron technology, Circuit part of the body USES is made of high-quality sheet metal

Digit cutting machine is suitable for heat heat-shrinkable tubing, teflon tube ,fiberglass pipe ,PVC pipe, PE pipe, Silicone tube, oil proof tube, PET tube, Fluorine plastic pipe, Erosion-resistant pipe, Yellow green tube, Floral tube, Thick wall sheathed, Double-wall corrugate pipe, Mark tube, Electrolytic capacitor PVC set, PVC plastic strip, Flat cable, Ribbon, Plastic hose, Insulating paper, Copper foil, Copper sheet, Double faced adhesive tape, PE bag film, leather, Non-woven fabric, Acetate cloth, Rubber blanket, cotton yarn belt, Seat belt, Elastic cord, Color bars, magic tape, package crawler, polybag, Battery separator,Nickel, diffusion sheet, Reflect sheet, Conductive fabric, Tongue foam, PET, VELCRO, Zipper,Etc. ribbon pattern or hose pattern.

Processing result of Ribbon Cutting Machine, Nylon Tape Cutting Machine, Trademark Cutting Machine

spare part of Ribbon Cutting Machine, Nylon Tape Cutting Machine, Trademark Cutting Machine

DIGITAL CUTTING MACHINE WPM-6100

Model No: WPM-6100 ​
