The Enamel Wire Stripping Machine WPM-6P precisely removes enamel insulation from wires. This machine ensures clean проводник exposure without damage, essential for preparing enamel wires for soldering and termination.
1. This model is usually used for thick copper wire (the stripping effects will be the best between 0.35-5mm diameter)
2. The stripping head consists of four sticks made of imported tungsten steel with centripetal working;
3. Widely used to strip enameled wires especially for the needs of removing enamel till the root of wire;
4. Suitable for various enamels removal;
5. Taper of the four sticks is adjustable, and this would help the scrap discharge
6. Easy to operate and adjust: rotating the screw to adjust for different enameled wire diameters;
7. Safety shield is equipped with this machine
Specification:
Model
WPM-6P
Copper Wire Diameter
About 0.35-5mm
Dimension
280*200*150MM
Weight
5.5kg
Voltage
220V, 50HZ
Power
120W
Rotation Rate
2800r/Min
Head Cutting Material
Imported Tungsten Cemented Carbide
Stripping Length
5MM-70MM

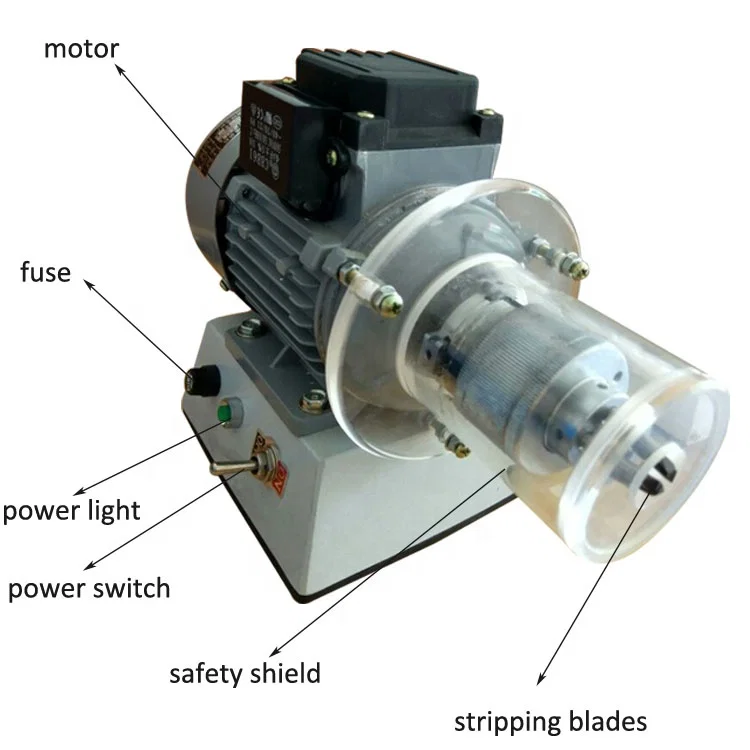

Here are the main parts of the copper wire stripping machine: Here are the core parts of this copper wire enamel-removing machine: the stripping head
The following picture is for some enamel removal samples, pls have a see:
Here are the core parts of this copper wire enamel-removing machine: the stripping head
