hot and cold cutting knives rotary knife ribbon tape cutting machine
hot and cold cutting knives rotary knife ribbon tape cutting machine

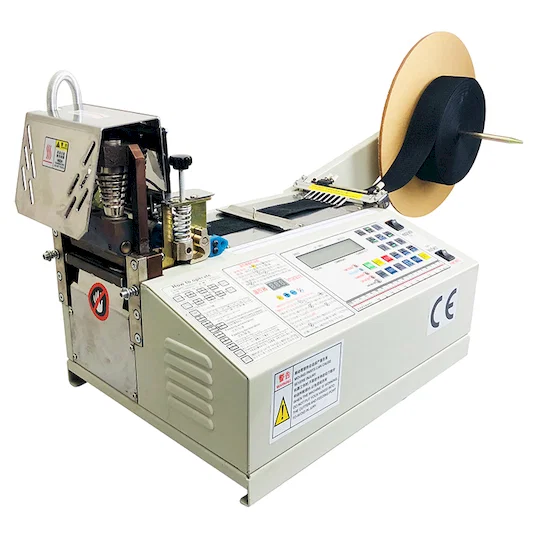

  • Hot and cold cutting knives rotary knife ribbon tape cutting machine

  • Model No: WPM-919X
  • hot and cold cutting knives rotary knife ribbon tape cutting machine for angles, View rotary knives tape cutting machine Available Knife Width: 100mm Available Cutting Length: 5~9999mm Tape Cutting Speed: 100~120Pcs/Min Cutting Tolerance: ≤0.5mm Cutting Type: Hot & Cold knives & Rotary knives Cutting Edge: 45-135 angles Air Pressure: 0.4-0.6Mpa Power Supply: AC220V/110V 50/60Hz
  • Inquiry now
Detailed description
hot and cold cutting knives rotary knife ribbon tape cutting machine for angles, View rotary knives tape cutting machine
1. Easy Operation, It can be cut automatically once set up the cutting length and quantity.
2. Self Protection Function, It will stop automatically if the materials run out during the operation.
3.High Speed, it can cut 100-120pcs per minute(50mm length for example)
4. High Accuracy, the cutting length is accurate owing to a stepping motor and imported driver.
5. Reset the Function, clear the cut numbers, and restart counting.
6. Hot & Cold Cutting Knives, can change easily between hot and cold cutting.

Apply for:

Widely used to cut kinds of woven belts, nylon buckles, lining, fabric tape without heat seal, plastic zippers,
metal zipper, plastic lace, PVC tube leather, aluminum platinum, PS material, and so on.
We supply kinds of special blades, then you can get different shapes of cutting edge.

Specification:

Available Knife Width: 100mm
Available Cutting Length: 5~9999mm
Tape Cutting Speed: 100~120Pcs/Min
Cutting Tolerance:  ≤0.5mm
Cutting Type: Hot & Cold knives & Rotary knives
Cutting Edge: 45-135 angles
Air Pressure: 0.4-0.6Mpa
Power Supply: AC220V/110V 50/60Hz
Available Materials: Fabric, satin, webbing tapes, elastic tapes, and belts,
nylon, zipper, leather, Hook & Loop, tubes, etc.

 Measurement: 450*350*350mm
Weight: 28kg
Features: Easy Operation
 High Speed
 High Accuracy
 Large Application
