Name: Induction Pneumatic Wire Stripper WPM-2018
Brand: JINGWEI
SKU: WPM-2018
Price: 1000.00 USD
Availability: InStock
Rating: 4.8 (89 reviews)

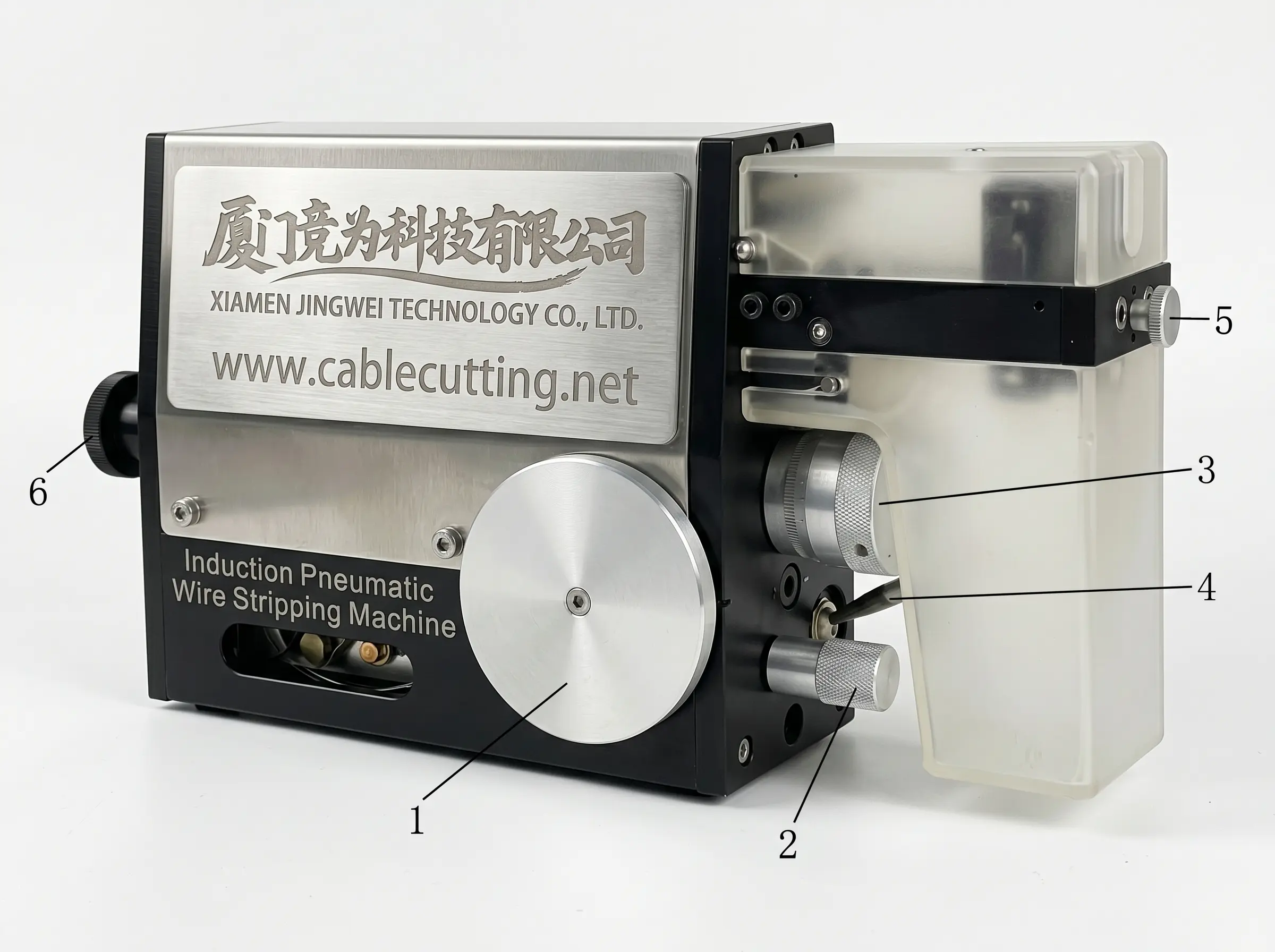

Induction Pneumatic Wire Stripper WPM-2018

Induction Pneumatic Wire Stripper WPM-2018
Model No: WPM-2018
WPM-2018 Induction Pneumatic Wire Stripper: Induction heating pneumatic stripper for specialized insulation types. Precisely heats insulation for clean stripping. Ideal for heat-sensitive wires. Advanced stripping technology.
Inquiry now

Detailed description

The induction pneumatic wire stripping machine boasts high accuracy, efficiency, and a quick return on investment. Its compact design allows for multiple processing units to be integrated into a single workstation, making it the most efficient way to process harnesses and multi-core cables.
High precision, economical and user-friendly. It requires extremely low maintenance and is easy to operate without the need for blade changes.
Model: WPM-2018
Outer dimensions: L265mm*W70mm*H135mm
Weight:2.4kg
Power supply:220V
Processing time: 0.3 s
Air pressure:0.5Pa-0.8Pa
Stripping length: max 18 mm
Applicable wires: PVC and Teflon wire, PUR, glass wire,1015,1017, multicore sheath cable, double round core sheathing wire, rubber wire, etc.
Size:0.03–3.0 mm²(32–12 AWG)
Max wire diameter:3.2mm
Max stripping length: 20mm
The precision of the Diameter setting:0.01mm
Stripping accuracy: Full strip:0.5mm, Part strip:2mm

samply display of Pneumatic Wire Stripping Machine, Multi-core Wire Cable Stripping Device, Multi-core Manual Wire Cable Stripper

samply display of Pneumatic Wire Stripping Machine, Multi-core Wire Cable Stripping Device, Multi-core Manual Wire Cable Stripper

Induction Pneumatic Wire Stripper WPM-2018

Model No: WPM-2018

WPM-2018 Induction Pneumatic Wire Stripper: Induction heating pneumatic stripper for specialized insulation types. Precisely heats insulation for clean stripping. Ideal for heat-sensitive wires. Advanced stripping technology.

Detailed description
