Network cable straightening machine USB shield wire twisting Straighte
Network cable straightening machine USB shield wire twisting Straighte
  • Network cable straightening machine USB shield wire twisting Straighte

  • Model No : WPM-809D
  • Network Cable Straightening Machine, Usb Straighten Machine, Shield Wire Straightening Machine
    Product Model WPM-809D
    Product name Wire straightening machine
    Input power AC 100-240V 50-60HZ
    Motor power 30-60W
    Compressed air 0.2-0.5 MPa
    Thread length 10-60 mm
    Operational control Footswitch
    Shell material 304 stainless steel weight 9.5KG
    Dimension 29*24*21 cm
    Fragile and consumable parts Washboard, foot switch
    Remark Special specifications products can be customized. Please send samples to us for reference when ordering.

  • Inquiry now
Detailed description

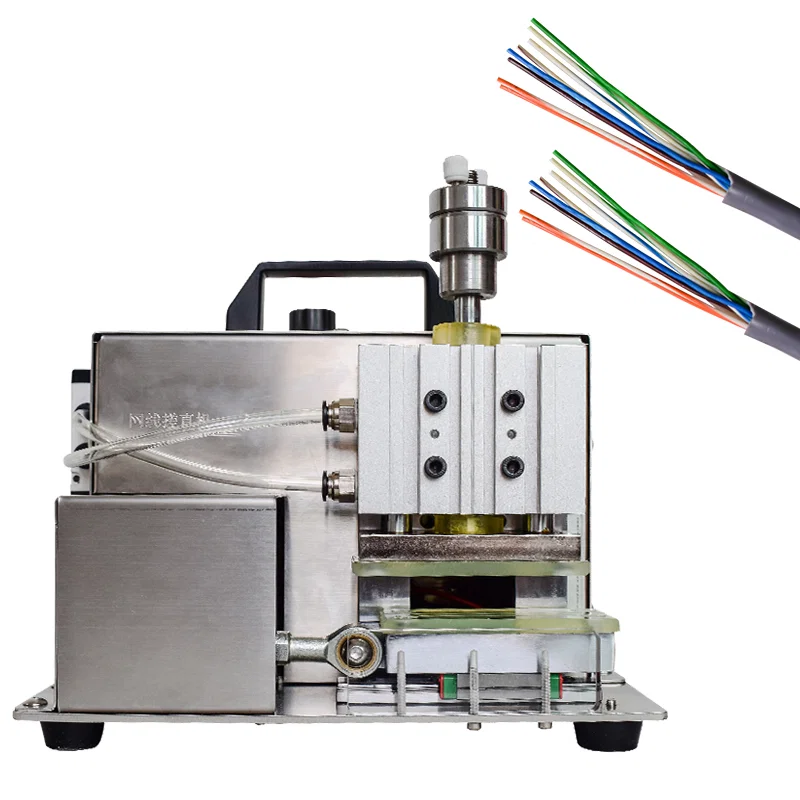

Network Cable Straightening Machine, Usb Straighten Machine, Shield Wire Straightening Machine

The network cable twisting machine is mainly used for multi-core cable straightening, it can be applied to HDMI, multi-core industry control cable, multi-core TYPE-C, USB 3.1 cable stranding and straightening, and network cable twisting to straighten.
Product Model WPM-809D
Product name Wire straightening machine
Input power AC 100-240V 50-60HZ
Motor power 30-60W
Compressed air 0.2-0.5 MPa
Thread length 10-60 mm
Operational control Footswitch
Shell material 304 stainless steel weight 9.5KG
Dimension  29*24*21 cm
Fragile and consumable parts Washboard, foot switch
Remark Special specifications products can be customized. Please send samples to us for reference when ordering.
Network Cable Straightening Machine, Usb Straighten Machine, Shield Wire Straightening MachineNetwork Cable Straightening Machine, Usb Straighten Machine, Shield Wire Straightening MachineNetwork Cable Straightening Machine, Usb Straighten Machine, Shield Wire Straightening Machine



If you are interested in this product, please send us your inquiry and we will reply to you ASAP!
