Penumatic Wire Stripping Twisting Machine WPM-3F+T
- Model No : WPM-3F+T
- Wire Stripping Twisting Machine,Wire Stripping Twisting Machine,Pneumatic Wire Stripping Twisting,Parallel Wire Twisting Machine
External appearance size 350*230*350mm
Weight 15kg
Power supply 220V/50HZ,110V/60HZ
Empty barometric pressure 0.4-0.75MP
Shell to twist velocity 120~30pcs/min
Stripping length 3--25mm
- Inquiry now

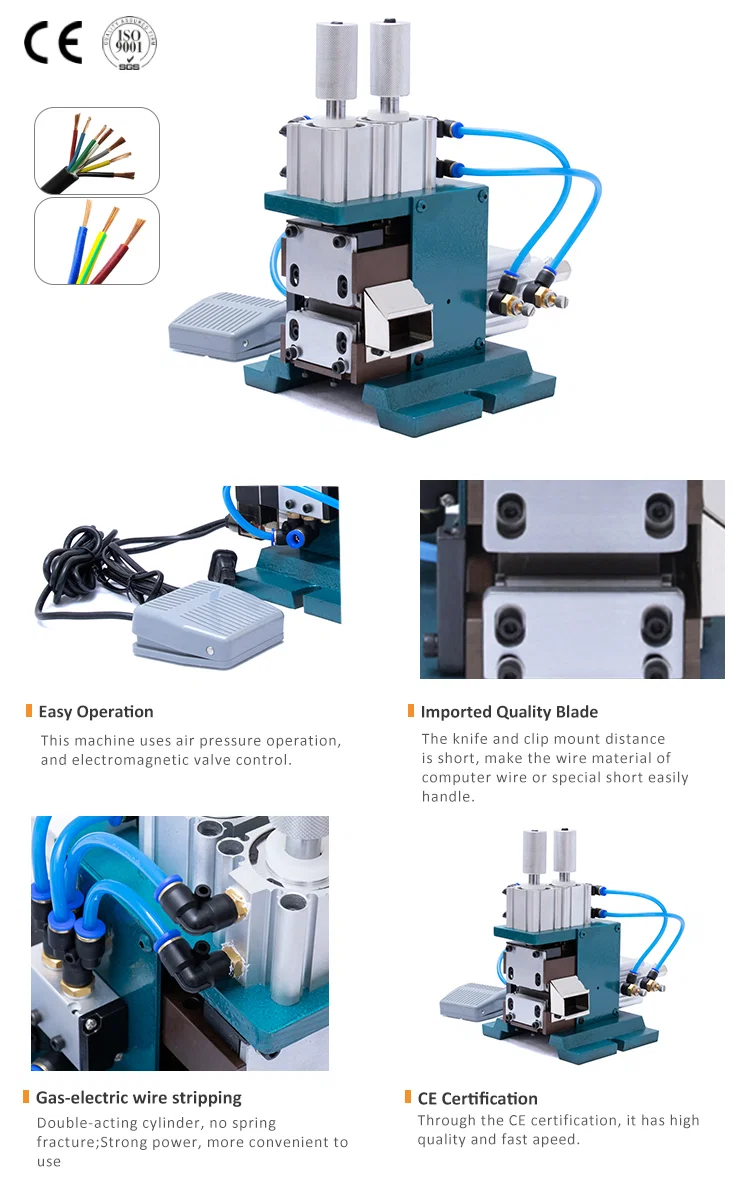

VERTICAL Pneumatic Wire Stripping Twisting
Machine (WPM-3F+T)
Description &Video
This machine is suitable for thin to thick
computer multi-core cables, telephone lines, flat cables, electrical
wires, Smart design makes the machine compact, lightweight, easier
operation. The peel twist feature enables multiple synchronization efficiency
multiplied, and its quality is perfect. Native compared to other similar
products show superior performance and reasonable price.
Feature
High precision, Economical & user-friendly
Extremely low maintenance
easy operation
Twisting
Processing Capabilities
Stripping Twisting
Technical Data
Model WPM-3F+T
External appearance size 350*230*350mm
Weight 15kg
Power supply 220V/50HZ,110V/60HZ
Empty barometric pressure 0.4-0.75MP
Shell to twist velocity 120~30pcs/min
Stripping length 3--25mm
Specifications:
|
Model |
WPM-3F |
WPM-4F |
WPM-3F+H |
WPM-3F+T |
WPM-4F+T |
|
Feature |
Normal Stripping |
Hot Knifle |
Stripping and Twisting |
||
|
Wire Size |
AWG18 ~ 32 |
AWG18 ~ 32 |
AWG18 ~ 32 |
||
|
Stripping Length |
20mm |
30mm |
20mm |
20mm |
30mm |
|
Air Pressure |
5 ~ 7Kgs |
5 ~ 8Kgs |
5 ~ 7Kgs |
5 ~ 7Kgs |
5 ~ 8Kgs |
|
Dimension |
260×150×270mm |
320×190×320mm |
260×150×270mm |
260×150×270mm |
320×190×320mm |
|
Net. Weight |
14Kg |
18Kg |
14Kg |
14Kg |
18Kg |
FAQ:
1 Price terms
The price is based on EXW/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you the CFR price or CIF price for reference.
2. What is your main market?
There are kinds of different clients from Asia, Africa, America, and Europe market.
3 . Could provide a professional solution based on our product?
We always promote suitable solutions based on products and satisfy clients with cost-down requirements.
4 Can we provide the sample for testing?
Yes, It will be a pleasure if u provide us with the sample for testing.
5 Do u test all goods before delivery?
Yes,100% test before shipment.
™ products are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts.
If any main parts have quality problems, we will provide new parts and send them to you to change at once with detailed technical support and video illustration, or our experience engineer help to solve them. All problems and questions can be responded to within 24 hours after receiving email/phone/other chatting tools.
