Name: Semi-Auto Mute Crimper WPM-3000S
Brand: JINGWEI
SKU: WPM-3000S
Price: 1000.00 USD
Availability: InStock
Rating: 4.8 (89 reviews)

Semi-Auto Mute Crimper WPM-3000S
Model No: WPM-3000S

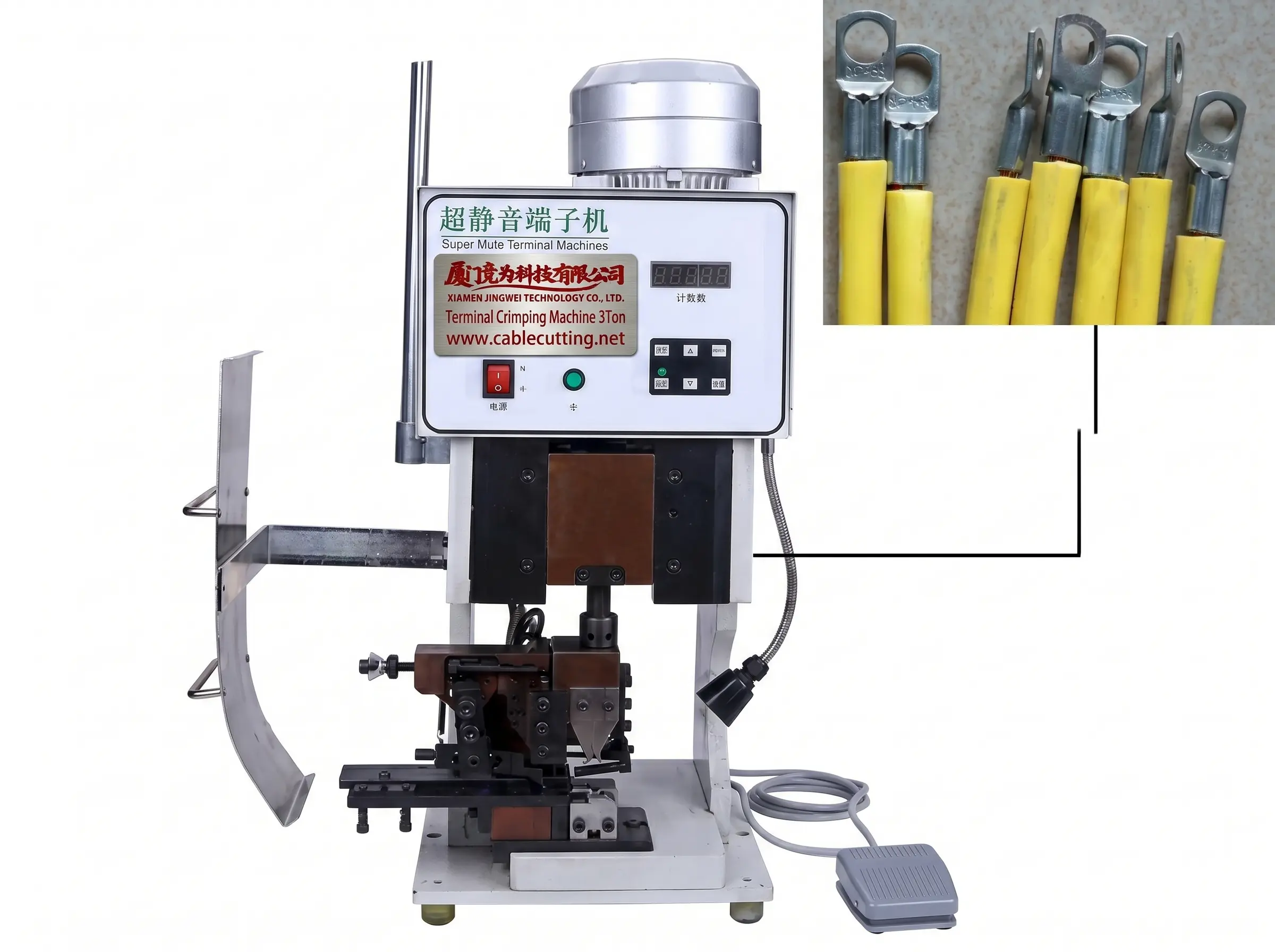

WPM-3000S Semi-Auto Mute Crimper: Semi-automatic mute crimper for increased production with reduced noise. Balances speed and quiet operation. Consistent crimp quality. Suitable for medium-volume, noise-conscious environments.
Inquiry now

Detailed description

The terminal crimping machine is a high-speed semi-automatic device that features rapid mold replacement and stable speed, making it compatible with various molds.
High-speed semi-automatic terminal machine, mold replacement fast, speed stability, can match a variety of mold.
The machine operation simple maintenance easy, for high yield and low maintenance vendors to save its fault phase
of the cost of waste and design, and beautiful appearance, elegant, make the plant nobler advanced.
1. Semi-Auto low noise Terminal Crimping Machine WPM-3000S, wire terminal crimping machine
2. Built-in frequency converter, high speed, and low noise
3. One machine is suitable for various terminals, very easy to change the mold.
4. Support manual mode and an automatic mode, you can adjust the machine easily in manual mode.
5. LED display will show how many terminals have been crimped.
6. Speed is adjustable, crimping die is designed according to your requirement.
Specification:
Output: 3.0TON
Application:
Computer terminals, DC terminals, AC terminals,
Single grain terminal, joint terminal
Nominal pressure: 2000KG
Average power consumption: 450W
Motor Power: 1100W
Stroke: 30mm(customized 40mm available)
Power Supply: 220V/50Hz, 110V/60Hz
Net. Weight: 49KG(not including mold)
Dimension: 270*240*650mm
Semi Automatic Mute Terminal Crimping Machine, Connector Earthing Terminal, Crimper Press Machine
Suitable for all kinds of terminals:
1. Electronic toys terminal, car/motorcycles, computer terminals, etc.
2. DC terminals, AC terminals.
3. Single terminal, horizontal terminals, straight terminals, etc.
4. Supporting customizing for their special terminals!

Mold	WPM-1000S	WPM-1500S	WPM-2000S	WPM-3000S	WPM-4000S	WPM-6000S
Power supply	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ
Pressing force	1000kc	1500kc	2000kc	3000kc	4000kc	6000kc
Motor power	0.35kw	0.55kw	0.75kw	1.0kw	1.5kw	2.2kw
Trip	30mm	30mm	30mm	30mm	30mm	30mm
Size	460210220mm	230210580mm	275225670mm	275245670mm	300265680mm	830360320mm
Weight	25kg	40kg	50kg	60kg	95kg	120kg

Semi-Auto Mute Crimper WPM-3000S

Model No: WPM-3000S

WPM-3000S Semi-Auto Mute Crimper: Semi-automatic mute crimper for increased production with reduced noise. Balances speed and quiet operation. Consistent crimp quality. Suitable for medium-volume, noise-conscious environments.
