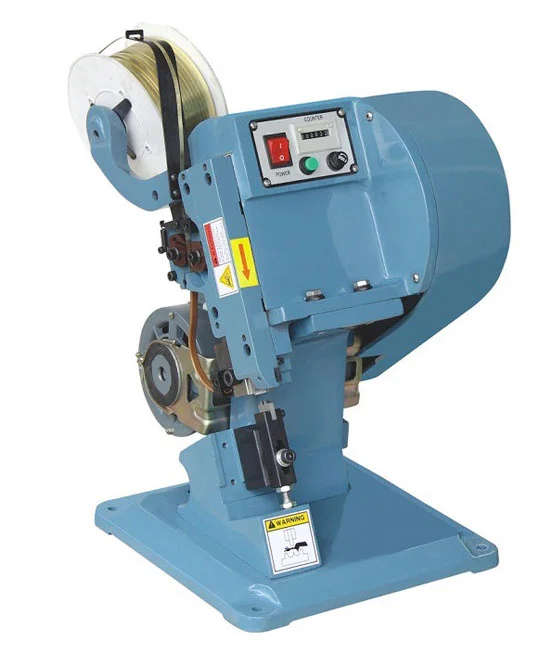

Semi-Auto Terminal Crimper WPM-4000S
Model No: WPM-4000S
WPM-4000S Semi-Auto Terminal Crimper: High-speed semi-automatic terminal crimper for volume production. Fast and reliable crimping action. Increases throughput significantly. For high-volume terminal processing.
Inquiry now

Detailed description

semi-automatic terminal crimping machine WPM-4000S
Terminal crimping machine, Wire Terminal Crimping Machine, Electric Terminal Crimping Machine
terminal crimping machine
1. Frequency conversion
2. Crimp force: 4.0 ton
3. Stroke: 30 mm
terminal crimping machine

Features:
Built-in frequency converter, high speed, and low noise.
Our machine is suitable for various terminals and very easy to change the applicator.
Support manual mode and an automatic mode, you can adjust the machine easily in manual mode
LED display will show how many terminals have been crimped.
Speed is adjustable, the crimping die is designed according to your requirements.
specification:

Model WPM-4000S
power AC 220V 50/60 HZ (single-phase)
stroke 30mm
press capacity 4Ton

Mold	WPM-1000S	WPM-1500S	WPM-2000S	WPM-3000S	WPM-4000S	WPM-6000S
Power supply	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ
Pressing force	1000kc	1500kc	2000kc	3000kc	4000kc	6000kc
Motor power	0.35kw	0.55kw	0.75kw	1.0kw	1.5kw	2.2kw
Trip	30mm	30mm	30mm	30mm	30mm	30mm
Size	460210220mm	230210580mm	275225670mm	275245670mm	300265680mm	830360320mm
Weight	25kg	40kg	50kg	60kg	95kg	120kg
