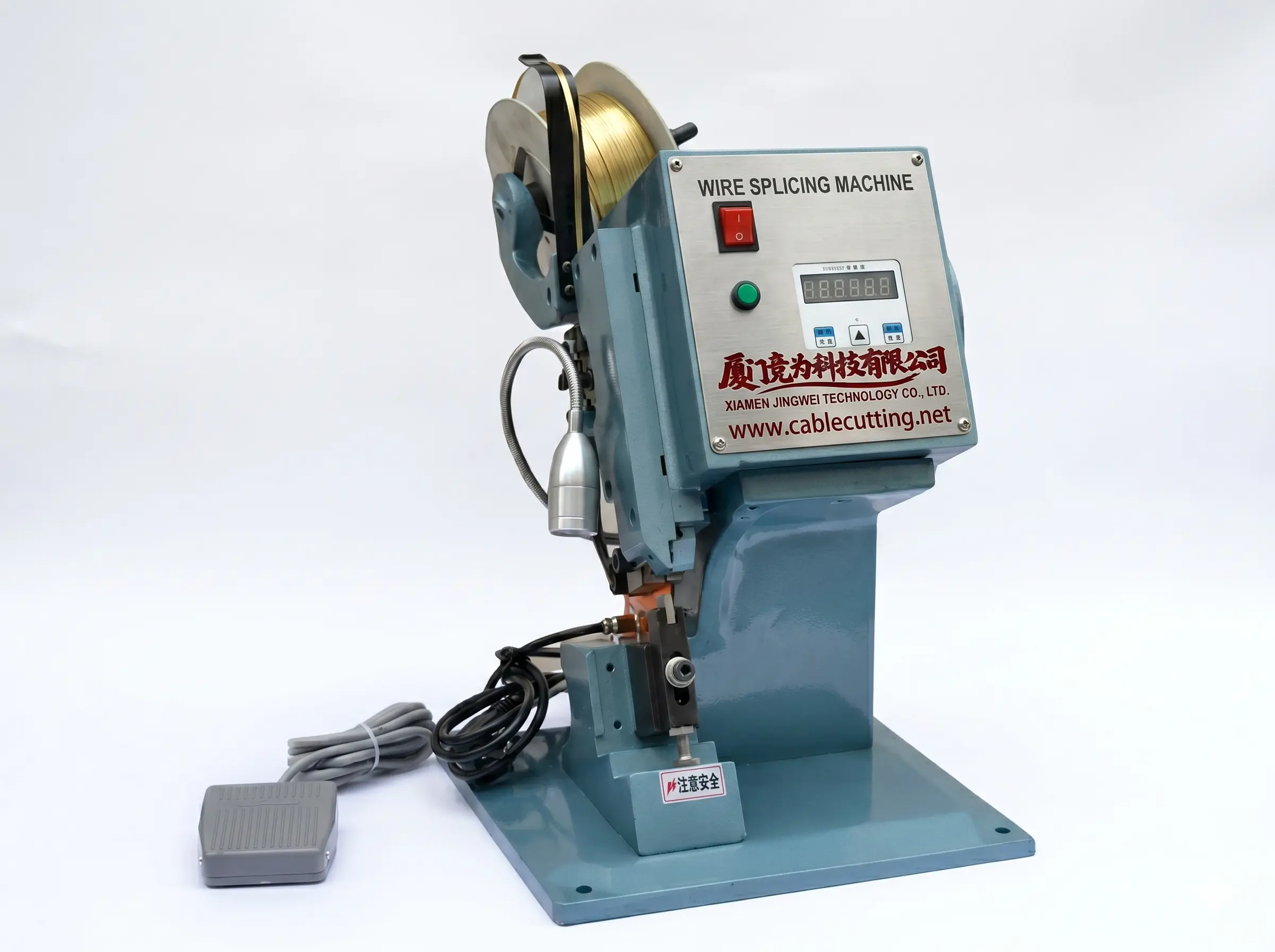

Name: Super Mute Wire Splicer WPM-TDJ04M
Brand: High-Performance Cable Stripping Machines
SKU: WPM-TDJ04M
Availability: InStock
Rating: 5 (1 reviews)

Detailed description | 产品细节

Wire splicing machine, Copper Belt Crimping Machine, Wire Connection Welding Machine

It's an upgraded wire splicing machine, that streamlines internal mechanical parts, to reduce wear and replacement.
A variable frequency motor drive, no conventional clutch operation delay, failure, torque, vibration,
high stability, and provide an ultra-quiet working environment.
No flywheel design, standby motor is at a standstill. It will rotate just when working, saving energy.
The machine working it in the range of 1-20 times, and the interval time is in the range of 0-20min.
Simple operation.

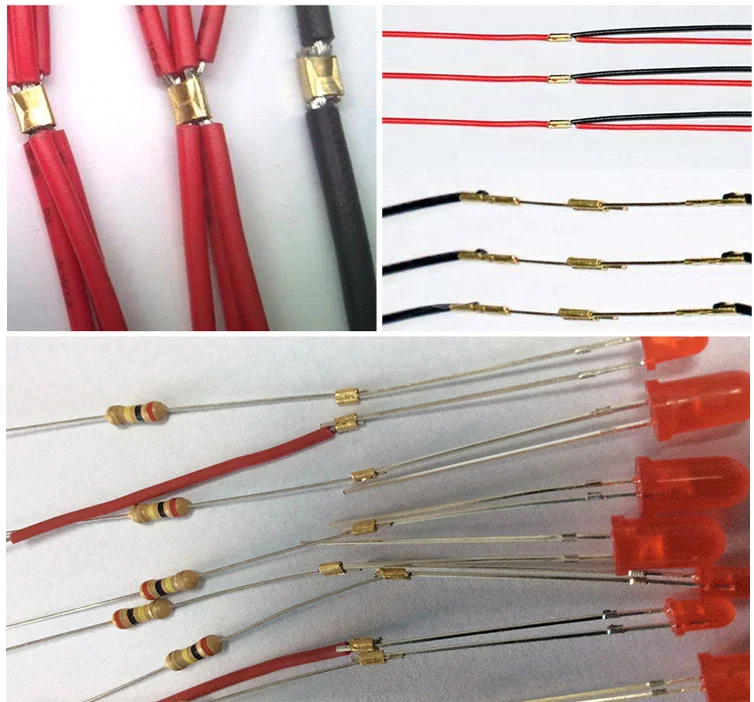

Apply for:
Connection with the resistance of neon, LED, and wires.
The slide switch is connected to the wires.
Connect the high temperature of the heating elements.
Sensitive components(such as reed switches, and temperature fuses) connection.
Transformer tap connections with wires.
Headphone cable card, set the pipeline fixed.

Wire and lead connections.

Specification:

Model	TDJ04M 1.8T	TDJ04M 3.0T	TDJ04M 4.0T
Power supply voltage	AC220V 50/60HZ
Pressing force	1800kg	3000KG	4000KG
Motor power	0.55KW	1.0KW	1.5KW
Feed length	22mm	32mm	42mm
Copper strip width	2/4/6mm	6/8/10mm	6/8/10mm
Size	310x450x480mm	330x600x630mm	430x700x730mm
Weight	45kg	110kg	130kg
