Tension-free Coaxial Cable Prefeeding Machine WPM-K203
Tension-free Coaxial Cable Prefeeding Machine WPM-K203 Tension-free Coaxial Cable Prefeeding Machine WPM-K203 Tension-free Coaxial Cable Prefeeding Machine WPM-K203 Tension-free Coaxial Cable Prefeeding Machine WPM-K203 Tension-free Coaxial Cable Prefeeding Machine WPM-K203
  • Tension-free Coaxial Cable Prefeeding Machine WPM-K203

  • Item No : WPM-K203

  • Tension-free Coaxial Cable Pre Feeding Machine, Cable Prefeeding Machine, Cable Pre Feeding Machine, Wire Spool Dereeler, Wire Prefeeder Machine

    Model WPM-K203
    Available Wire Size Φ0.6-5mm
    Max. Feeding Speed 2.5m/s
    Max. Reel Weight 25kg
    Power Supply 220V/50Hz
    Weight 40kg
    Dimension 830x550x950mm



Detailed description

Tension-free Coaxial Cable Pre feeding Machine, Cable Prefeeding Machine, Cable Pre Feeding Machine, Wire Spool Dereeler, Wire Prefeeder Machine

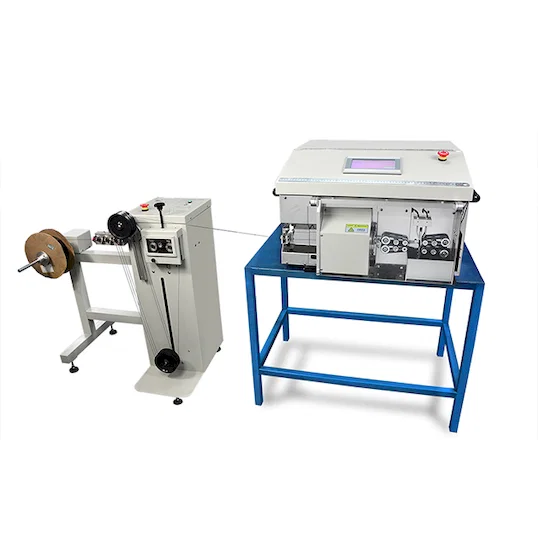

This wire pre-feeding machine is specially designed for automatically feeding cables to the coaxial cable stripping machine. It ensures that the wire is always in a state of uniform relaxation and improves the wire feeding precision of the automatic coaxial wire stripping machine.

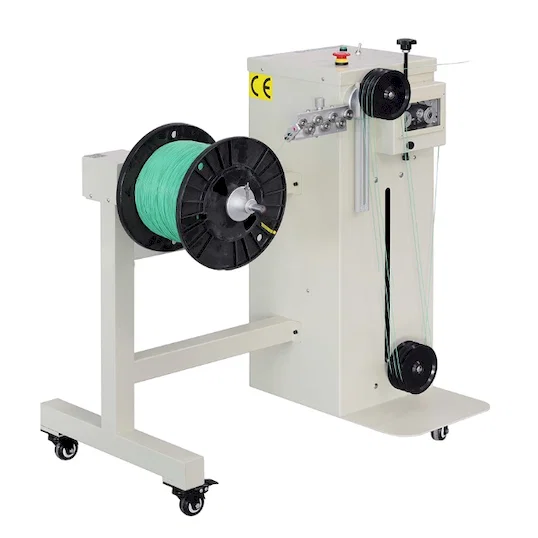

Built in 2 sets of motors and multiple sets of sensors, the middle section is equipped with a wire straightener, which can automatically straighten the wire at the same time as the wire is fed.

Model

WPM-K203

Available wire size

Φ0.6-5mm

Max. feeding speed

2.5m/s

Max. reel weight

25kg

Power supply

220V/50Hz

Weight

40kg

Dimension

830x550x950mm
