Terminal Pull Force Tester WPM-ADL-0.5KN

Terminal Pull Force Tester WPM-ADL-0.5KN
Model No: WPM-ADL-0.5KN
WPM-ADL-0.5KN Terminal Pull Force Tester: Digital pull force tester for accurate terminal crimp strength measurement. Provides precise readings for quality assurance. Ensures reliable terminal connections. For laboratory and production line testing.
Inquiry now

Detailed description

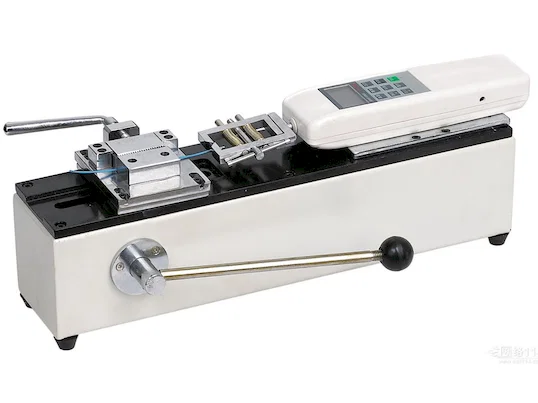

Terminal Pull Force Tester WPM-ADL-0.5KN
Terminal Pull Force Tester, Pulling Force Tester, Cable Pulling Force Tester, Cable Crimp Terminal Pulling Force Tester
The terminal pull force tester is specially designed for measuring the pull forces of crimp connections, weld connections, and many other possibilities. Simple LCD for easy programming and readout, it provides a standard interface for curve analysis and downloading test data.

Force range: 500N (1000N tester is optional)
Resolution: 0.01 N
Accuracy: ± 0.5%
Power supply: nickel cyanide battery (220V AC charging 4 to 6 hours)
Ambient temperature: 0 to 60 of
Ambient humidity:<80%
Allowable overload: 150%
Dimensions: 115mm × 180mm × 30mm

Terminal Pull Force Tester WPM-ADL-0.5KN

Model No: WPM-ADL-0.5KN

WPM-ADL-0.5KN Terminal Pull Force Tester: Digital pull force tester for accurate terminal crimp strength measurement. Provides precise readings for quality assurance. Ensures reliable terminal connections. For laboratory and production line testing.
