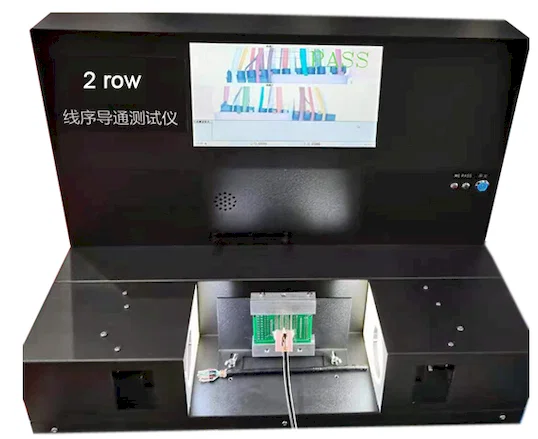

Double row housing wires color insertion sequence test machine WPM-8AB
Double row housing wires color insertion sequence test machine WPM-8AB
  • Double row housing wires color insertion sequence test machine WPM-8AB

  • Model No : WPM-8AB
  • Double Row Housing Wires Sequence Test Machine, Double Row Wires Sequence Test Machine, Double Row Wires Sequence Inspection Machine
    Voltage 200-240VAC 50/60HZ
    Weight 20kg
    Packing size 560*440*450mm
    Working environment Temp 0-40°C, Relative humidity<80%
    Color test Wire sequence color misordering, misplacement, wrong PIN
    Continuity test 64PIN continuity/open circuit/Instantaneous open test
    Test result voice broadcast, NG lock
    Applicable products Automotive wire harness, single end 2-row, 2-ends 2-row, Type-C, HDM1, USB, wire-to-PCB, customized
    2-row wire harness color and continuity tester
    There are a series of wire harness sequence testers:
    Single function, Single row / 2-row, wire sequence test;
    2-in-1, Single row / 2-row, wire sequence & continuity test;
    3-in-1, Single row / 2-row, wire sequence & continuity & point print;
    multi-end housing composite wire harness test.
    And so on.
  • Inquiry now
Detailed description Double Row Housing Wires Sequence Test Machine, Double Row Wires Sequence Test Machine, Double Row Wires Sequence Inspection Machine
1. The instrument is flexible and versatile: 1) The three-in-one test of "wire sequence + continuity (insulation optional) + dot print(optional)" can be set, or the two-in-one test of "wire sequence color + continuity" can be set. 2) You can set only the "wire sequence color test", and you can also set the "wire sequence color + point search" two-in-one test at the same time. 3) The 8-AB double-row whole instrument is designed to measure "HDM1, TYPE-C, USB" and other core wire sorting. 4) Optional: For special products, the three-in-one test of "wire sequence + terminal not in place + continuity" can be set at the same time, which can test composite products such as electronic components. 5) Wine sequence & conduction can be set according to the product "single selection, multiple selection custom test sequence" function.

2. The instrument is highly intelligent: 1) Human-machine interface, easy to set up, easy to learn, and easy to operate, can remotely guide customers to debug. 2) The same color and front and back sides are automatically identified during debugging, and the front and back sides of the housing can be placed at will during testing. 3) Editable files & test parameters, which can be called directly later, automatically determine PASS or NG, and automatically lock the machine when NG is found. 4) It can effectively filter the printing on the wire body, and can effectively detect the in-place insertion of special products. 5) The test results are displayed on the screen, indicator lights, and voice prompts, and the test data can be stored and exported for easy access and analysis. 6) Conduction can detect 64-point open circuits, dislocation, instantaneous disconnection, and point detection. 7) The quantity of each good product can be set, and it will automatically alarm after the number is reached, saving manual weighing.

3. Diversification of test products, wide range: 1) Can test single-ended, double-ended, double-row holes and multi-ended, multi-segment non-sequential wiring harness products 2) Can test single wire, flat wire, shielded wire, silicone wire, CABLE, and other types of products. 3) Can test PCB board, USB, HDM1, TYPE-C, patch cord, and other composite products. 4) Appearance defect detection of electronic products (such as PCB solder joints). 5) Widely used to test various wire and cable combination products such as consumer electronics, automobiles, medical care, communications, machinery and equipment, new energy, etc.
Name 2-row wire harness color and continuity tester
Test range width 1-50mm
Voltage 200-240VAC 50/60HZ
Weight 20kg
Packing size 560*440*450mm
Working environment Temp 0-40°C, Relative humidity<80%
Color test Wire sequence color misordering, misplacement, wrong PIN
Continuity test 64PIN continuity/open circuit/Instantaneous open test
Test result voice broadcast, NG lock
Applicable products Automotive wire harness, single end 2-row, 2-ends 2-row, Type-C, HDM1, USB, wire-to-PCB, customized
2-row wire harness color and continuity tester
There are a series of wire harness sequence testers:
Single function, Single row / 2-row, wire sequence test;
2-in-1, Single row / 2-row, wire sequence & continuity test;
3-in-1, Single row / 2-row, wire sequence & continuity & point print;
multi-end housing composite wire harness test.
And so on.
Applications of Double Row Housing Wires Sequence Test Machine, Double Row Wires Sequence Test Machine, Double Row Wires Sequence Inspection Machine


If you are interested in this product, please send us your inquiry and we will reply to you ASAP!
